10×10 Trade Show Exhibit Display Booth | EVT220T-Alpine

Original price was: $7,664.00.Current price is: $3,895.00.

10′ x 10′ Light-Duty Triangular Aluminum Truss Booth System

Truss System Dimensions
Overall System Height: 9.84 ft (3 m)
Overall System Width: 9.84 ft (3 m)
Overall System Length: 9.84 ft (3 m)
Approximate Coverage: 100 sq ft

Truss Dimensions
Overall Truss Width: 8.66 in (220 mm)
Main Tubing: 1.37 in (35 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.31 in (8 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Material Type: Aluminum Alloy EN AW-6082 T6
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F23, EVT220T, and all standard 220mm Triangular Truss systems
Weight: 160 lb (72.57 kg)

In stock

SKU: EVT220T-ALPINE-1010-TS Categories: ,


Description

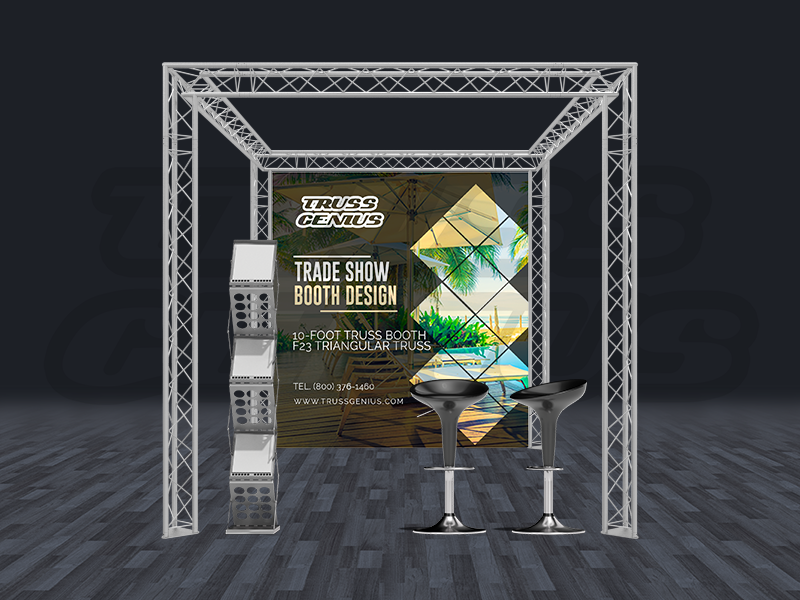

10×10 Light-Duty Triangular Aluminum Truss Booth – Trade Show Display System (EVT220T-Alpine)

The EVT220T-Alpine 10×10 Trade Show Exhibit Display Booth is a sleek, lightweight, and sturdy truss system designed for easy assembly and efficient use of floor space. Built using EVT220T 220 mm (8.66″) triangular aluminum truss, this system offers a stylish, modern aesthetic that differs from standard square grid structures, making it perfect for retail displays, DJ booths, and exhibitions where visual flair is essential.

Fabricated from high-quality EN AW-6082 T6 aluminum alloy with a brushed aluminum finish, this booth is corrosion-resistant and durable despite its lighter weight. The system utilizes a conical connection system for quick setup—typically requiring just a steel hammer for assembly. This kit provides a stable 9.84′ x 9.84′ footprint, offering ample exhibit space without the bulk of heavy-duty rigging towers.

Unlock Limitless Configurations with Modular Expansion

The EVT220T-Alpine is more than just a static 10×10 booth; it is a scalable building block for your event infrastructure. Because it is built from standard EVT220T Series components, you can easily modify its design to suit different venues without buying a completely new system:

  • Adjust Dimensions: Need a taller clearance or a wider entrance? Insert additional 0.5m, 1.0m, or 2.0m straight segments to customize the height and width to your specific venue requirements.
  • Change the Geometry: The triangular profile allows for unique apex-up, apex-down, or apex-in mounting orientations, creating distinct visual lines that square truss cannot replicate.
  • Grow Your Inventory: This system seamlessly integrates with the entire EVT220T Catalog, allowing your rigging options to grow alongside your business needs.

System Specifications

  • System Dimensions: 9.84 ft (3 m) W x 9.84 ft (3 m) L x 9.84 ft (3 m) H.
  • Truss Type: EVT220T Light-Duty Triangular Aluminum Truss (220mm / 8.66″).
  • Tube Diameter: 35mm (1.37″) Main Chords.
  • System Compatibility: Fits F23 and standard 220mm triangular truss systems.
  • Total System Weight: Approx. 160 lb (72.57 kg).
  • Material: Aluminum Alloy EN AW-6082 T6.
  • Included: All necessary connecting hardware (Couplers, Pins, R-clips).

Designed by Evolve Truss, the EVT220T-Alpine delivers a high-tech look with professional-grade structural integrity.

⚠️ Critical Accessory Warning

❗ Clamp Compatibility: This system uses 35mm (1.37″) diameter tubing. Standard 2-inch (50mm) clamps WILL NOT FIT. You must use specialized 35mm Clamps for mounting lighting, banners, or monitors.

⚠️ Safety & Engineering Notice

❗ Critical Usage Guidelines:

  • Load Capacity: Do not exceed the specified load capacity (approx. 65 lb per linear foot distributed). All loads must be distributed equally between chords.
  • Inspection: Inspect all truss segments for damage or deformation before use. Remove damaged items from service immediately.
  • Assembly: Ensure all Couplers, Pins, and R-clips are fully seated and secured.
  • Handling: Handle segments carefully to avoid denting the thinner 35mm main tubes.
  • Professional Review: A licensed engineer must review all custom structures, lighting plots, or specific installations.

Technical Drawings & Dimensions

10x10 Trade Show Exhibit Display Booth EVT220T-Alpine Cutsheet

Disclaimer: Drawings are for guidance only. Purchase does not authorize specific installation without engineering review.

Why Choose Evolve Truss?

✅ Certified Quality & Expert Support

  • Authorized Dealer: Direct partnerships with trusted truss manufacturers.
  • Expert Guidance: Real-world experience in staging, rigging, and system planning.

🔒 Secure Transactions & Transparent Policy

  • Advanced SSL encryption protects all transactions.
  • Transparent pricing policy (prices and promotions subject to change).

Experience the Evolve Truss Difference

Trusted by staging professionals nationwide, Evolve Truss delivers certified components, expert guidance, and a seamless purchasing experience.

Contact us today to get a quote on the EVT220T-Alpine 10×10 Triangular Truss Booth or to discuss custom configurations.

Additional information

Weight 160 lbs
Dimensions 120 × 120 × 120 in
