Description

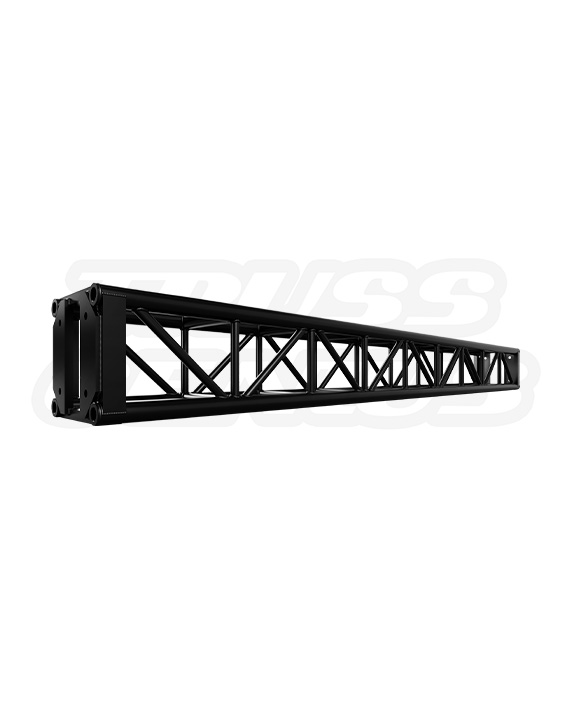

EVT12S-9FT Black | 9-Foot Aluminum Truss Section (12×12 Box Truss Plated) – Matte Black
The EVT12S-9FT Black Aluminum Truss Section is a precision-engineered 9-foot straight segment designed specifically for 12-inch square end-plated aluminum truss systems. Finished in a durable matte black powder coat, this component is ideal for long-span applications, allowing for fewer connection points while maintaining a discreet, non-reflective appearance in professional stage environments.
Function & Compatibility:
Unlike conical systems, the EVT12S series utilizes an industry-standard nut-and-bolt end-plate connection. This 9-foot section features a rigid square profile that matches the geometry of standard 12″ box truss, ensuring a seamless structural transition. It is perfect for overhead grids and long horizontal runs where minimizing joints contributes to a cleaner architectural look and faster setup.
Key Features
- Modular Length: 9-foot straight section, optimized for efficient long-span layouts.
- Professional Black Finish: High-quality matte black powder coat eliminates glare and blends seamlessly into dark backgrounds.
- Included Hardware: Ships complete with 4x Grade 8 Bolts, Nuts, and Washers (Black finish hardware may vary, standard zinc/galv typically supplied unless specified) for immediate, high-strength assembly.
- Heavy-Duty Construction: Fabricated from 6061-T6 Aluminum Alloy for superior strength-to-weight ratio.
- End-Plated Design: Compatible with EVT12S and other standard 12-inch plated truss systems using bolt connections.
- TÜV Specifications: Fabricated in accordance with strict TUV manufacturing standards.
Designed by Evolve Truss, the EVT12S-9FT Black delivers the reliability and structural consistency demanded by professional production environments.
⚠️ Safety & Engineering Notice
❗ Critical Load Rating Information: The rated load capacity for this 9-foot segment depends entirely on the full system configuration. The truss section itself is typically not the limiting factor in a properly designed system. For precise load specifications, always refer to the official EVT12S Truss Series Load Tables for the specific span length you are building. Consult a qualified engineer before use.
Important Guidelines for Safe Use:
- Inspect the end plates and bolt holes for deformation or wear before every use.
- Ensure all Grade 8 bolts are properly torqued to manufacturer specifications.
- Handle with care to prevent chipping the powder coat finish.
- Do not mix truss components from different manufacturers unless the bolt pattern and plate dimensions have been strictly verified.
- The purchase of this product does not authorize specific installations; a licensed professional engineer shall review all structures, lighting plots, or other aluminum truss uses.
⚠️ Compatibility Warning for Mixed-Brand Builds
Crucial Steps for Safe Assembly:
- Verify Bolt Patterns: Plated truss varies by manufacturer. Compare your existing truss plate dimensions against EVT12S specifications before purchase.
- Check Alignment: Ensure chord alignment is precise to prevent uneven loading on the bolts.
- Mixing incompatible plated truss can lead to structural failure.
