Description

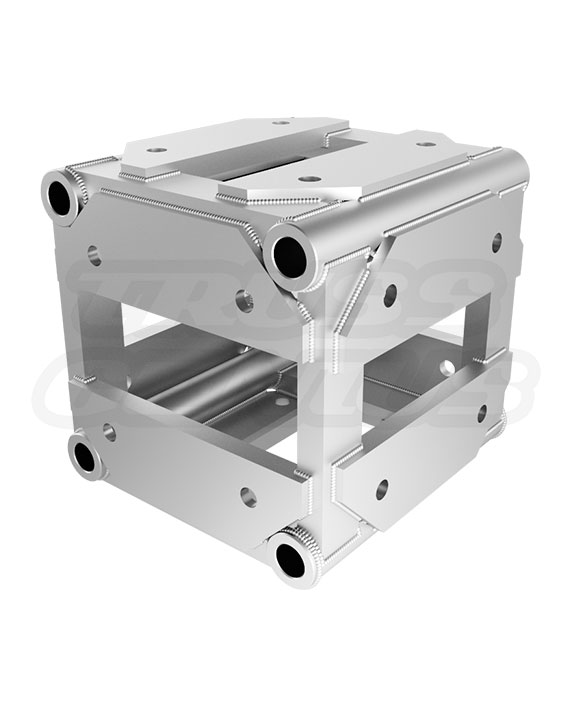

EVT12S-Block | 6-Way Aluminum Truss Corner Block (12×12 Box Truss Plated)
The EVT12S-Block Aluminum Truss Corner Block is a precision-engineered 6-way connection node designed specifically for 12-inch square end-plated aluminum truss systems. Manufactured from high-quality 6061-T6 aluminum alloy, this component acts as a universal hub, allowing truss runs to converge from multiple directions (X, Y, and Z axes) to create complex corners, intersections, and vertical grids.
Function & Compatibility:
Unlike fixed 2-way or 3-way corners, this universal block offers maximum design flexibility. It features a rigid multi-face design that matches the geometry of standard 12″ box truss, utilizing the industry-standard nut-and-bolt end-plate connection. It is the ideal solution for demanding rig designs, allowing for 90-degree turns, T-junctions, and cross-junctions without requiring multiple specific corner types.
Key Features
- Universal 6-Way Design: Allows connections on all six faces for maximum layout flexibility.
- Versatile Configuration: Replaces the need for separate 2-way, 3-way, and 4-way corner pieces.
- Heavy-Duty Construction: Fabricated from 6061-T6 Aluminum Alloy for superior strength-to-weight ratio.
- End-Plated Design: Compatible with EVT12S and other standard 12-inch plated truss systems using bolt connections.
- TÜV Specifications: Fabricated in accordance with strict TUV manufacturing standards.
- Professional Finish: Clean aluminum surface integrates seamlessly with standard silver trussing.
Designed by Evolve Truss, the EVT12S-Block delivers the reliability and structural consistency demanded by professional production environments.
⚠️ Safety & Engineering Notice
❗ Critical Load Rating Information: The rated load capacity of a corner block depends on the connection orientation and load distribution. Do not support loads directly from the block’s connection points. Always consult the official EVT12S Truss Series Load Tables and a qualified engineer when determining load limits for complex junctions.
Important Guidelines for Safe Use:
- Inspect the end plates and bolt holes for deformation or wear before every use.
- Ensure all Grade 8 bolts are properly torqued to manufacturer specifications.
- Do not mix truss components from different manufacturers unless the bolt pattern and plate dimensions have been strictly verified.
- The purchase of this product does not authorize specific installations; a licensed professional engineer shall review all structures, lighting plots, or other aluminum truss uses.
⚠️ Compatibility Warning for Mixed-Brand Builds
Crucial Steps for Safe Assembly:
- Verify Bolt Patterns: Plated truss varies by manufacturer. Compare your existing truss plate dimensions against EVT12S specifications before purchase.
- Check Alignment: Ensure chord alignment is precise to prevent uneven loading on the bolts.
- Mixing incompatible plated truss can lead to structural failure.
Why Choose Evolve Truss?
✅ Certified Quality & Expert Support
- Authorized Dealer: Direct partnerships with trusted truss manufacturers.
- Expert Guidance: Real-world experience in staging, rigging, and system planning.
🔒 Secure Transactions & Transparent Policy
- Advanced SSL encryption protects all transactions.
- Transparent pricing policy (prices and promotions subject to change).
Experience the Evolve Truss Difference
Trusted by staging professionals nationwide, Evolve Truss delivers certified components, expert guidance, and a seamless purchasing experience.
Contact us today to support complex layouts and clean system geometry with the EVT12S-Block Aluminum Truss Corner Block.
