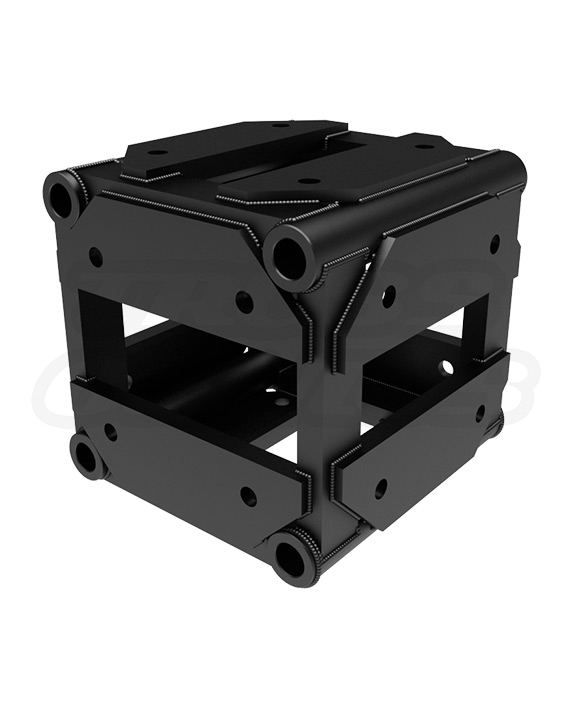

EVT12S-Block Black | 6-Way Aluminum Truss Corner Block (12×12 Box Truss Plated) – Matte Black

The EVT12S-Block Black Aluminum Truss Corner Block is a precision-engineered 6-way connection node designed specifically for 12-inch square end-plated aluminum truss systems. Finished in a durable matte black powder coat, this component acts as a universal hub, allowing truss runs to converge from multiple directions (X, Y, and Z axes) to create complex corners, intersections, and vertical grids while maintaining a discreet, non-reflective appearance.

Function & Compatibility:

Unlike fixed 2-way or 3-way corners, this universal block offers maximum design flexibility. It features a rigid multi-face design that matches the geometry of standard 12″ box truss, utilizing the industry-standard nut-and-bolt end-plate connection. It is the ideal solution for demanding rig designs, allowing for 90-degree turns, T-junctions, and cross-junctions without requiring multiple specific corner types.

Key Features

• Universal 6-Way Design: Allows connections on all six faces for maximum layout flexibility.
• Versatile Configuration: Replaces the need for separate 2-way, 3-way, and 4-way corner pieces.
• Professional Black Finish: High-quality matte black powder coat eliminates glare and blends seamlessly into dark backgrounds.
• Heavy-Duty Construction: Fabricated from 6061-T6 Aluminum Alloy for superior strength-to-weight ratio.
• End-Plated Design: Compatible with EVT12S and other standard 12-inch plated truss systems using bolt connections.
• TÜV Specifications: Fabricated in accordance with strict TUV manufacturing standards.

Designed by Evolve Truss, the EVT12S-Block Black delivers the reliability and structural consistency demanded by professional production environments.

⚠️ Safety & Engineering Notice

❗ Critical Load Rating Information: The rated load capacity of a corner block depends on the connection orientation and load distribution. Do not support loads directly from the block’s connection points. Always consult the official EVT12S Truss Series Load Tables and a qualified engineer when determining load limits for complex junctions.

Important Guidelines for Safe Use:

• Inspect the end plates and bolt holes for deformation or wear before every use.
• Ensure all Grade 8 bolts are properly torqued to manufacturer specifications.
• Handle with care to prevent chipping the powder coat finish.
• Do not mix truss components from different manufacturers unless the bolt pattern and plate dimensions have been strictly verified.
• The purchase of this product does not authorize specific installations; a licensed professional engineer shall review all structures, lighting plots, or other aluminum truss uses.

⚠️ Compatibility Warning for Mixed-Brand Builds

Crucial Steps for Safe Assembly:

• Verify Bolt Patterns: Plated truss varies by manufacturer. Compare your existing truss plate dimensions against EVT12S specifications before purchase.
• Check Alignment: Ensure chord alignment is precise to prevent uneven loading on the bolts.
• Mixing incompatible plated truss can lead to structural failure.
