9.44″ x 9.44″ Aluminum Base Plate – Compatible with EVT220S & EVT220T Truss Series

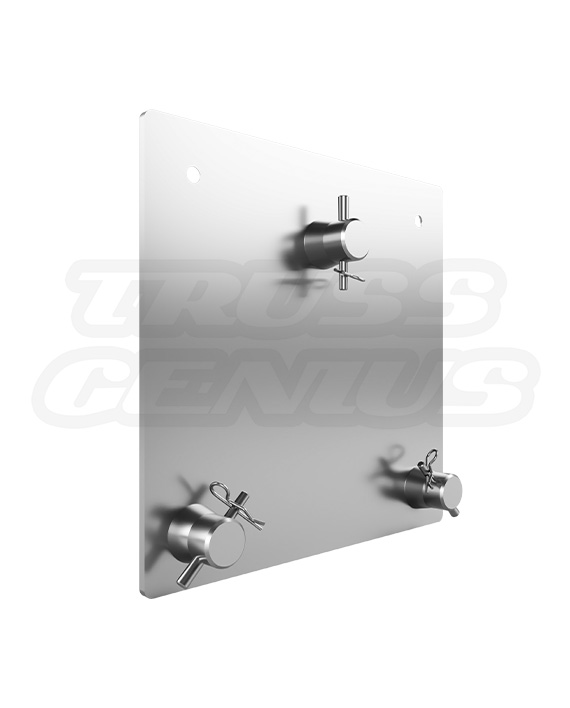

EVT220ST-ABP Aluminum Base Plate
Mounts to Top or Bottom of EVT220S Square or EVT220T Triangular Aluminum Truss
The EVT220ST-ABP is a versatile aluminum base plate designed to serve as a stable foundation for EVT220S and EVT220T truss segments. Ideal for supporting Truss Totems or Glow Totems, it mounts directly to the top or bottom of truss sections and offers flexibility in compact or elevated display environments.
Quality and Durability
Crafted from corrosion-resistant aluminum alloy with a brushed finish, this base plate combines strength and style. Designed for long-term use in demanding environments, it provides a professional appearance while standing up to repeated use.
Easy Assembly
Each plate ships with compatible connection hardware for EVT220S and EVT220T truss, enabling fast, tool-friendly installation. Whether you’re a seasoned pro or setting up your first rig, the EVT220ST-ABP is designed to make your setup experience smooth and efficient.
Why Base Plate Size Matters
Unlike larger base plates that enhance tipping resistance, the EVT220ST-ABP is designed to match the truss profile for low-profile support applications. Here’s what this means for your setup:
- Compact stability: Ideal for use as an end cap or top/bottom plate where a flush fit is critical.
- Space-saving integration: Perfect for tight setups, low-clearance applications, or when minimal footprint is preferred.
- Streamlined aesthetics: Provides a clean, minimal finish without extending beyond the truss outline.
Although it does not offer the leverage of oversized base plates, the EVT220ST-ABP excels in applications where compactness and visual continuity are key.
Key Features
- Compatible With: EVT220S square and EVT220T triangular aluminum truss
- Mounting Options: Top or bottom of truss
- Footprint: 9.44 in × 9.44 in (239.7 mm × 239.7 mm)
- Material: Aluminum alloy 6061-T6
- Finish: Brushed aluminum
- Ideal Use: Totems, vertical display anchors, or truss bases
- Weight: 2.24 lb (1.01 kg)
⚠️ Safety Notice
- Inspect before each use—do not use if damaged or warped.
- Never suspend loads from the truss connection point.
- Use only with properly secured truss hardware.
- Ensure all couplers, bolts, and R-clips are fully seated and locked.
- Installation should be done by qualified personnel.
- Have a licensed engineer evaluate for all load-bearing installations.
⚠️ STEP & DWG Files Available
Engineers, Designers & Project Managers: Request STEP & DWG files for seamless integration into CAD drawings and structural planning.
