Description

Truss Pin & R-Clip Set (10-Pack) | Tapered Steel Hardware (EVT290A-CPCP)

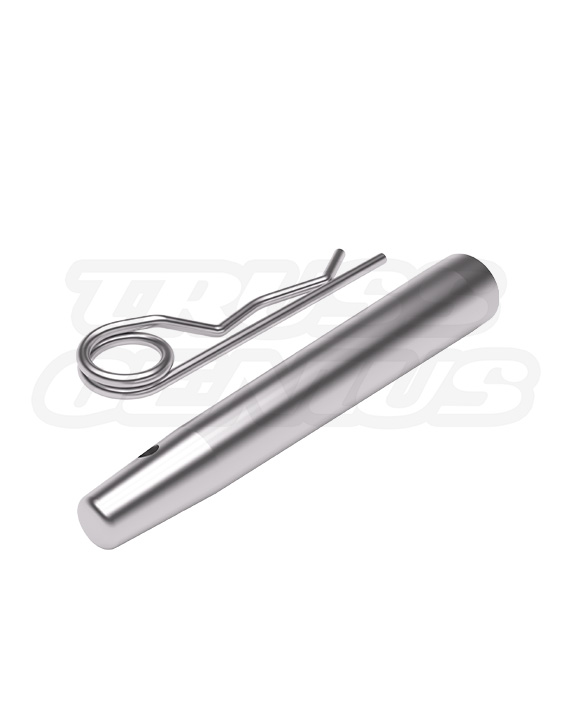

The EVT290A-CPCP is the essential locking hardware set designed for 290 mm square conical truss systems. This convenient 10-Pack includes **10 x Tapered Steel Pins** and **10 x Safety R-Clips (Cotter Pins)**. These are the critical fasteners used to secure the conical coupler (spigot) inside the truss receiver, creating a tight, structural connection.

Function & Compatibility:

The tapered design of the pin works in conjunction with the conical coupler to self-align the connection and eliminate gaps. When tapped in with a copper or brass hammer, the pin draws the truss sections together, ensuring a rigid, rattle-free joint. It is fully F34 Compatible, making it the perfect replacement hardware for EVT290S and most major 290mm conical truss brands.

Material Specifications:

• Tapered Pin: Manufactured from Steel Grade S45C, offering high tensile strength and shear resistance to withstand heavy rigging loads.
• Cotter Pin (R-Clip): Made from durable Spring Wire, providing excellent elasticity and secure retention.

Key Features

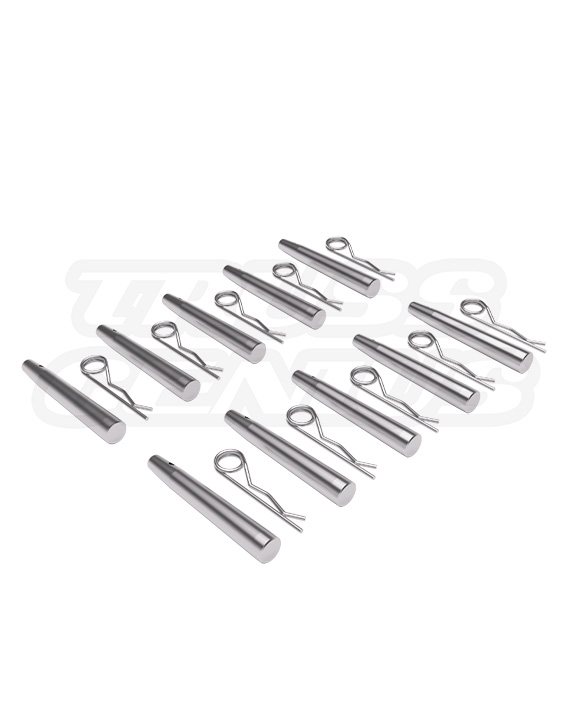

• Bulk 10-Pack: Includes 10 pins and 10 clips, perfect for restocking toolboxes and road cases.
• Compatibility: F34 Compatible design connects seamlessly with standard 290mm square truss straights and corners.
• Precision Taper: Ensures a tight, vibration-free fit and aligns truss chords perfectly.
• High-Strength Steel: S45C steel pin resists shearing and deformation under load.
• Safety Lock: Spring wire R-clip prevents accidental pin removal.
• Essential Spare: Pins are the most commonly lost truss accessory; this pack ensures you always have backups on hand.

Designed by Evolve Truss, the EVT290A-CPCP is a direct replacement for lost or damaged hardware on any standard conical truss system.

⚠️ Safety & Engineering Notice

❗ Critical Safety Check:

• Primary Fastener: The pin is the primary fastener holding your structure together. Never use a mushroomed, bent, or cracked pin.
• Installation Tool: Always use a Copper or Brass Hammer to install pins. Steel hammers can mushroom the pin head, making it impossible to remove or damaging the truss receiver.

Important Guidelines for Safe Use:

• Ensure the R-clip is fully inserted through the pin hole.
• Inspect pins for signs of “necking” or shearing before every use.
• Do not substitute standard bolts or non-rated hardware for these specialized tapered pins.
• Assembly and installation must be performed only by trained and qualified personnel.

⚠️ Compatibility Warning

Crucial Steps for Safe Assembly:

• Fit Verification: Verify pin diameter and taper angle before using with other truss brands.
• Alignment: Confirm the pin hole alignment matches the truss receiver. Forcing a pin into a misaligned hole can damage the truss.
