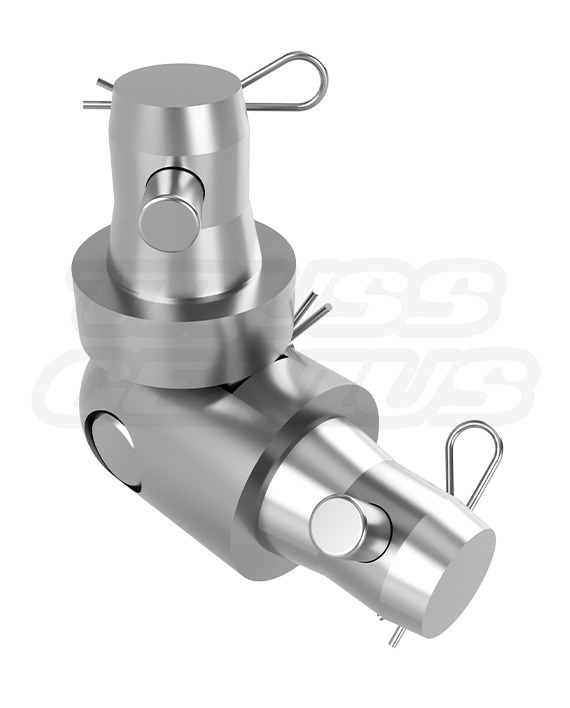

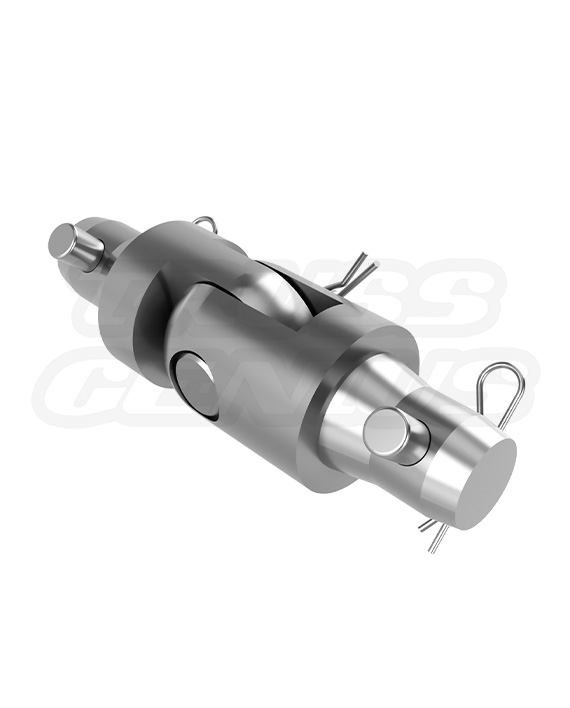

Variable Angle Truss Hinge – Left Side – 88mm Adjustable Connector (EVT290A-H180L)

The EVT290A-H180L is a heavy-duty Left-Side variable angle hinge connector designed for 290 mm square conical aluminum truss systems. The “L” designation indicates this unit is configured for the left side of the truss connection (typically paired with a Right-Side unit). This versatile component is a critical tool for truss ground support systems, allowing for the safe erection of vertical towers via the “tip-up” method.

Function & Compatibility:

By installing this hinge between the truss tower and the base, installers can assemble the tower horizontally on the ground and then safely pivot it into the vertical position. It can also be used to create custom angular junctions ranging from 0 to 180 degrees for non-standard geometric shapes. It is fully F34 Compatible, ensuring seamless integration with EVT290S and most major 290mm square truss brands.

Key Features

• Orientation: Left-Side Hinge (identified by the ‘L’ suffix).
• Hinge Body Length: Measures 88mm (3.46″) in length.
• Tower Erection Aid: Facilitates the safe lifting of ground support towers.
• Variable Angle Design: Allows for custom angles between 0 and 180 degrees.
• Compatibility: F34 Compatible design integrates seamlessly with standard 290mm square truss systems.
• Robust Construction: Heavy-duty hinge mechanism designed to withstand erection stresses.

Designed by Evolve Truss, this hinge is an indispensable tool for production companies that regularly deploy ground support systems or require flexible design options.
