EVT290S-135DA | 2-Way 135-Degree Fixed Angle Corner

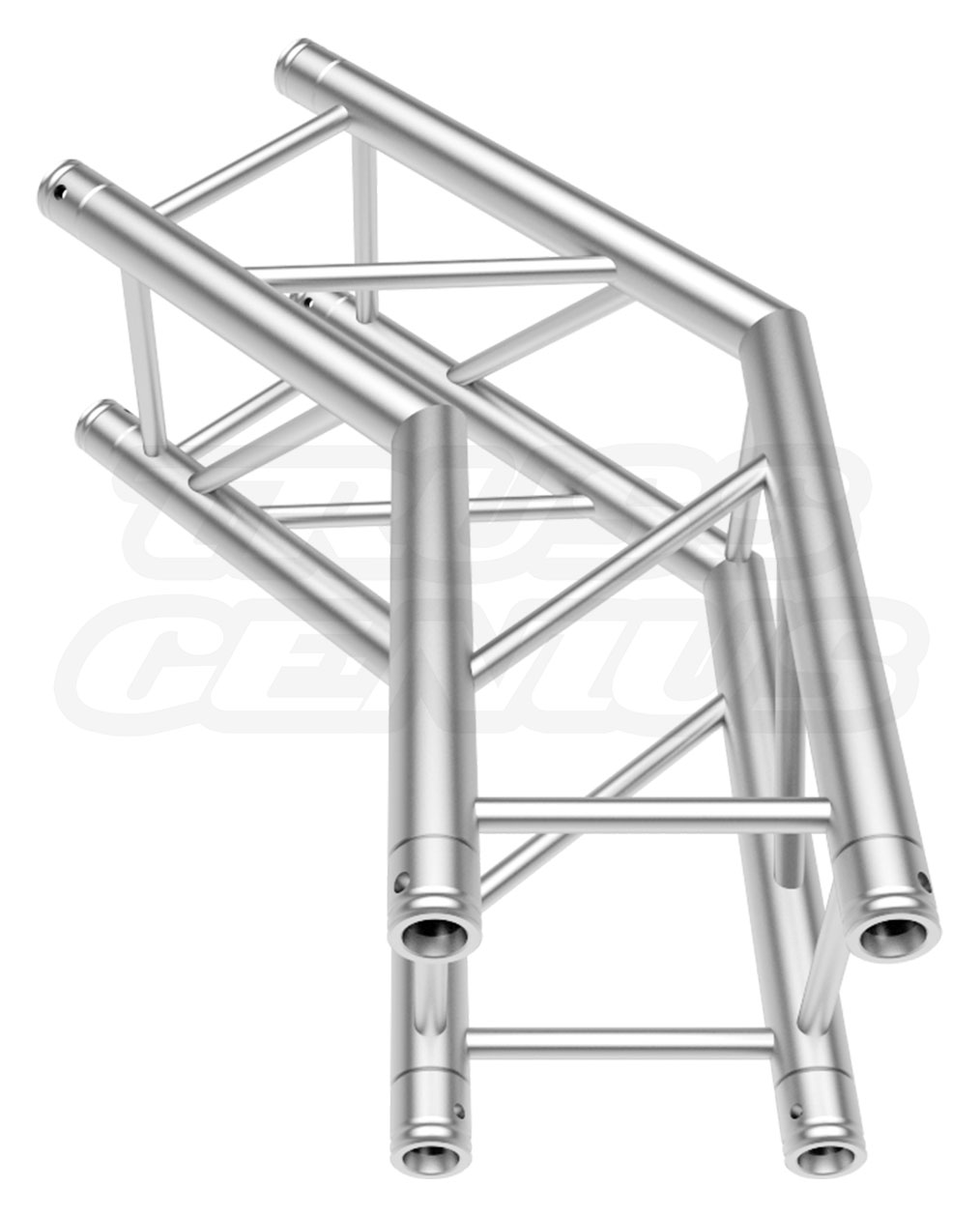

The EVT290S-135DA is a specialized 2-Way 135-degree fixed-angle aluminum corner section designed for EVT290S 290 mm square conical aluminum truss systems. Finished in a professional brushed aluminum, this component features a wide, obtuse angle (135-degree internal angle). It is the essential geometric tool specifically engineered for constructing **octagonal (8-sided) structures**.
Creative Geometric Applications:
- Octagonal Structures: This is the specific corner required to build octagons. 8 of these units create a complete octagon when connected with straight segments (8 corners x 45° deflection = 360°). Ideally suited for MMA cages, gazebo roofs, and 360-degree lighting rigs.
- Ring-Like Effects: For larger scale productions where a full circle truss isn’t available, chaining multiple 135-degree corners together creates a smooth, ring-like perimeter that approximates a circle using straight segments.
- Wide Arches: Perfect for creating wide, inviting entrance arches that feel more open and accessible than standard square portals.
Manufactured from high-grade 6082-T6 aluminum alloy and fabricated in accordance with TUV specifications, the EVT290S-135DA delivers dependable performance with a secure conical connection system. The welded diagonal bracings ensure added stiffness and structural rigidity required for these complex shapes.
Key Features
- 135-Degree Internal Angle: Wide, obtuse angle designed for octagons and gentle curves.
- Octagon Fabrication: Requires 8 units to form a complete closed octagon structure.
- Compatibility: Fits F34, EVT290S, and other brands utilizing the 290 mm square truss system. Exact fit with other manufacturers is not guaranteed.
- Professional Brushed Finish: High-quality aluminum finish matches standard truss lengths for a uniform look.
- Secure Conical Connection System: Conical receivers and couplers secured with Pins and R-clips.
- Durable Construction: 6082-T6 Alloy provides high strength-to-weight ratio and corrosion resistance.
- Modular Design: Seamlessly integrates with standard straight lengths to expand design options.
Designed by Evolve Truss, the EVT290S-135DA is compatible with 50 mm (1.97″) clamps, allowing seamless integration with common truss accessories and rigging hardware.
⚠️ Safety & Engineering Notice
❗ Critical Load Rating Information: The rated load capacity of this corner depends on the complete system configuration and total span length. Corners and angles are critical structural nodes; always consult applicable EVT290S load tables and a qualified engineer when determining system load limits.
Important Guidelines for Safe Use:
- Never exceed the rated load capacity of the truss system.
- No loads shall be supported directly from truss connection points.
- Inspect all truss components before each use and remove damaged parts from service.
- Handle truss components with care—avoid dropping, dragging, or improper stacking.
- Assembly and installation must be performed only by trained and qualified personnel.
- Ensure all Couplers, Pins, and R-clips are correctly installed and fully secured.
- Account for all applicable forces, including dynamic and transverse forces such as wind loads.
- Do not mix truss components from different manufacturers.
- All truss structures must be reviewed and approved by a licensed professional engineer.
⚠️ Compatibility Warning for Mixed-Brand Builds
Crucial Steps for Safe Assembly:
- Verify all dimensions before integrating with other truss brands.
- Confirm conical connector type, node spacing, and system geometry.
- Mixing components without verification may compromise structural integrity and safety.
Why Choose Evolve Truss?
✅ Certified Quality & Expert Support
- Authorized Dealer: Direct partnerships with trusted truss manufacturers.
- Expert Guidance: Real-world experience in staging, rigging, and system planning.
🔒 Secure Transactions & Transparent Policy
- Advanced SSL encryption protects all transactions.
- Transparent pricing policy (prices and promotions subject to change).
Experience the Evolve Truss Difference
Trusted by staging professionals nationwide, Evolve Truss delivers certified components, expert guidance, and a seamless purchasing experience.
Contact us today to learn how the EVT290S-135DA can help you build octagons and unique geometric structures for your next event.
