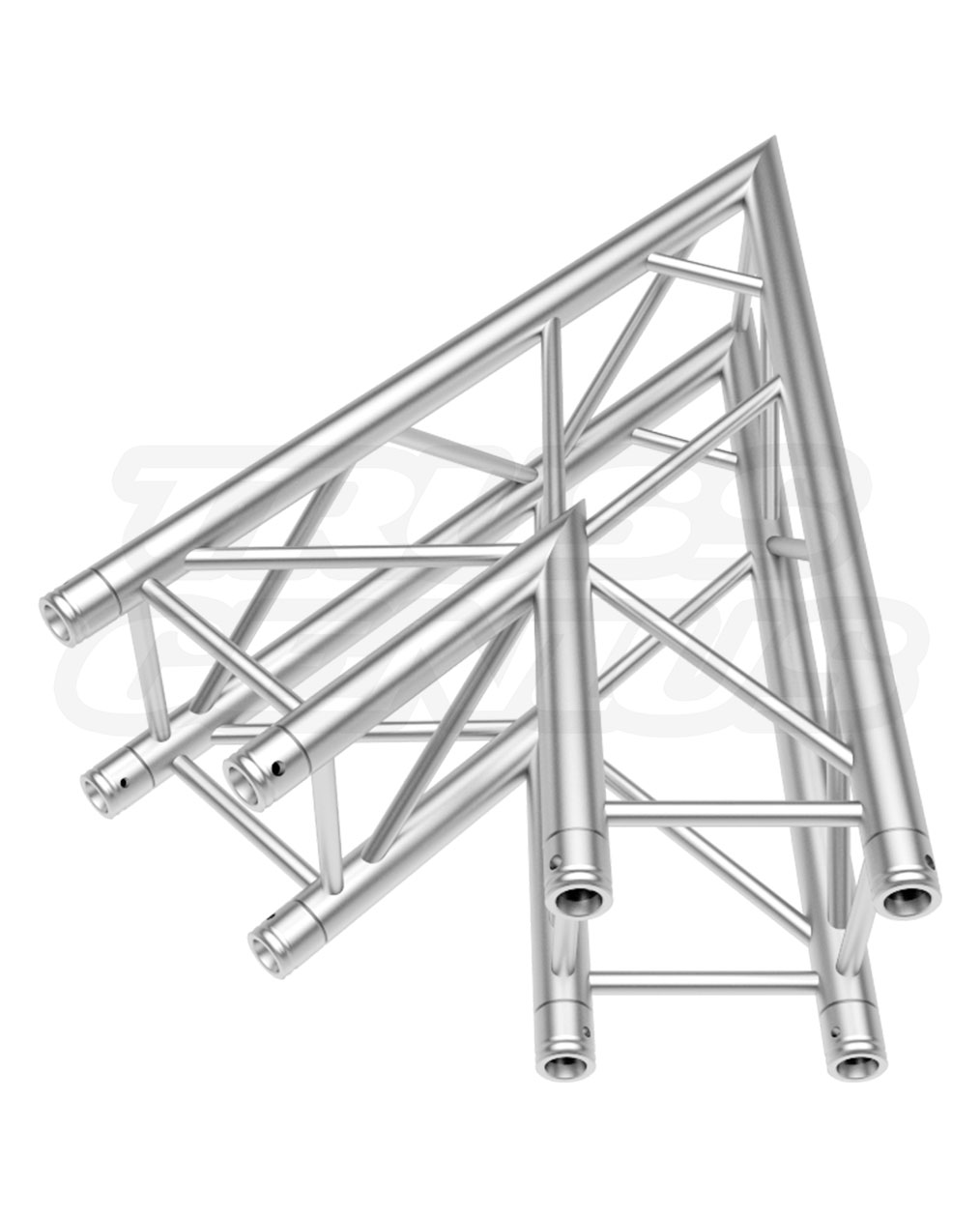

EVT290S-45DA | 2-Way 45-Degree Acute Angle Corner

The EVT290S-45DA is a specialized 2-Way 45-degree acute angle aluminum corner section designed for EVT290S 290 mm square conical aluminum truss systems. Finished in a professional brushed aluminum, this component features a sharp 45-degree internal angle, creating a tight “V” shape. Unlike wider corners used for circular or octagonal perimeters, this acute corner is engineered for bold, aggressive geometric designs and sharp directional changes.

Creative Geometric Applications:

• Zig-Zag Structures: Connect multiple acute corners with straight lengths to create striking “sawtooth” or zig-zag stage backdrops and lighting walls.
• Decorative “V” Elements: Ideal for creating angular entrance arches with a sharp peak, or “W” and “M” shaped branding structures.
• Steep Roof Peaks: Can be used as the peak ridge for steep-pitch decorative roof structures or truss sculptures.
• Compact Returns: Allows a truss line to turn back sharply on itself, useful for complex grid layouts where space is limited.

Manufactured from high-grade 6082-T6 aluminum alloy and fabricated in accordance with TUV specifications, the EVT290S-45DA delivers dependable performance with a secure conical connection system. The welded diagonal bracings ensure added stiffness and structural rigidity required for these sharp angular loads.

Key Features

• 45-Degree Acute Angle: Creates a sharp, internal “V” shape (not for octagons/circles).
• High-Impact Geometry: Perfect for zig-zags, sharp peaks, and aggressive stage aesthetics.
• Compatibility: Fits F34, EVT290S, and other brands utilizing the 290 mm square truss system. Exact fit with other manufacturers is not guaranteed.
• Professional Brushed Finish: High-quality aluminum finish matches standard truss lengths for a uniform look.
• Secure Conical Connection System: Conical receivers and couplers secured with Pins and R-clips.
• Durable Construction: 6082-T6 Alloy provides high strength-to-weight ratio and corrosion resistance.
• Modular Design: Seamlessly integrates with standard straight lengths to expand design options.

Designed by Evolve Truss, the EVT290S-45DA is compatible with 50 mm (1.97″) clamps, allowing seamless integration with common truss accessories and rigging hardware.

⚠️ Safety & Engineering Notice

❗ Critical Load Rating Information: The rated load capacity of this corner depends on the complete system configuration and total span length. Sharp acute corners introduce unique stress points; always consult applicable EVT290S load tables and a qualified engineer when determining system load limits.

Important Guidelines for Safe Use:

• Never exceed the rated load capacity of the truss system.
• No loads shall be supported directly from truss connection points.
• Inspect all truss components before each use and remove damaged parts from service.
• Handle truss components with care—avoid dropping, dragging, or improper stacking.
• Assembly and installation must be performed only by trained and qualified personnel.
• Ensure all Couplers, Pins, and R-clips are correctly installed and fully secured.
• Account for all applicable forces, including dynamic and transverse forces such as wind loads.
• Do not mix truss components from different manufacturers.
• All truss structures must be reviewed and approved by a licensed professional engineer.

⚠️ Compatibility Warning for Mixed-Brand Builds

Crucial Steps for Safe Assembly:

• Verify all dimensions before integrating with other truss brands.
• Confirm conical connector type, node spacing, and system geometry.
• Mixing components without verification may compromise structural integrity and safety.
