20″ x 20″ Aluminum Base Plate – Lightweight Support for EVT290S Square Truss

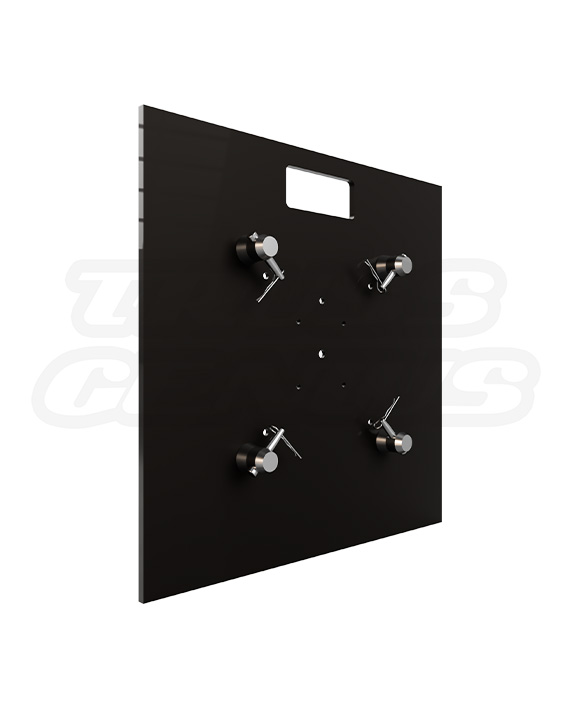

EVT290S-BBP20 Aluminum Base Plate
Designed for EVT290S Square Aluminum Truss Series
The EVT290S-BBP20 is a precision‑machined aluminum base plate with an enlarged 20‑inch footprint. The wider surface area distributes vertical loads more effectively and offers greater tipping resistance—ideal for tall totems, signage towers, or trade‑show displays. A built‑in laser‑cut handle makes transport and positioning quick and safe.
Quality and Durability
Fabricated from high‑strength 6061‑T6 aluminum alloy and finished with a matte black powder coat, this plate provides corrosion resistance, low weight, and a refined appearance that minimizes reflections in lighting or motion‑capture environments.
Why Matte Black Powder Coating Matters
- Anti‑Reflective Finish: Absorbs stray light and reduces on‑camera glare—ideal for broadcast, motion capture, and theatrical lighting grids.
- Enhanced Durability: Powder coating outperforms conventional paint, offering superior resistance to scratches, chipping, and corrosion.
- Weather Resistance: Forms a sealed outer layer that protects the aluminum core in indoor and outdoor conditions.
- Low Maintenance: Hides fingerprints and surface blemishes, staying clean with minimal upkeep.
- Professional Aesthetic: Seamlessly blends into dark stage environments for a discreet, polished look.
Why Bigger Footprint Matters
- Improved Stability: 20″ coverage delivers more leverage against tipping than smaller plates.
- Load Distribution: Spreads forces across a greater area, reducing point stress on the floor.
- Versatile Mounting: Provides space for ballast or accessory clamps when additional anchoring is required.
Easy Assembly
The plate ships with conical connectors and bolts pre‑drilled for EVT290S uprights, enabling fast, tool‑friendly installation by both experienced techs and first‑time users.
Key Features
- Compatible With: EVT290S square aluminum truss
- Footprint: 20 in × 20 in (508 mm × 508 mm)
- Material: Lightweight 6061‑T6 aluminum alloy
- Finish: Matte black powder-coated
- Plate Thickness: 0.375 in (9.52 mm)
- Integrated Handle: Laser‑cut grip for easy carrying
- Weight: 13.5 lb (6.12 kg)
⚠️ Safety Notice
- Do not exceed the rated load capacity of the EVT290S‑BBP20.
- Never suspend loads from truss connection points.
- Inspect before each use; remove damaged plates from service.
- Ensure all couplers, pins, and R‑clips are fully secured.
- Assembly and rigging should be performed by qualified personnel.
- Have a licensed structural engineer review all load‑bearing designs.
⚠️ STEP & DWG Files Available
Engineers & Designers: Request CAD files for straightforward integration into 3‑D models and technical drawings.
