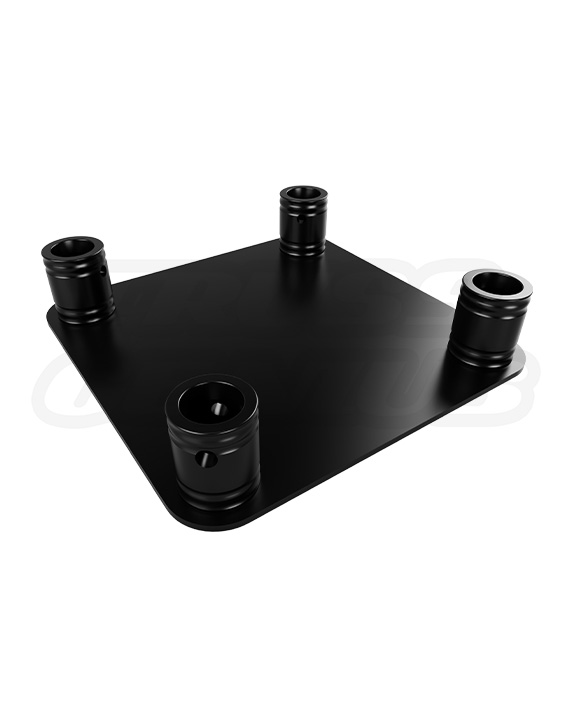

EVT290S-BBP60 Black 60 mm (2.36 in) Matte Black Aluminum Truss Base Plate | EVT290S Series Compatible

The EVT290S-BBP60 Black Aluminum Base Plate is a precision-engineered foundation component designed specifically for EVT290S 290 mm square conical aluminum truss systems. This specialized plate features integrated 60 mm (2.36 in) spacers and is finished in a durable, non-reflective matte black powder coat, making it the ideal solution for stage productions, motion capture studios, and broadcast environments where visual discretion and layout flexibility are paramount.

Manufactured from high-grade 6082-T6 aluminum alloy, the BBP60 Black provides a stable, dependable foundation while maintaining a sleek, professional appearance. The powder-coated finish ensures an anti-reflective surface that eliminates glare and hotspots—critical for clean filming and sensor data. It features a secure conical connection system consisting of conical receivers and couplers, always secured together with Couplers, Pins, and R-clips to ensure fast assembly and structural safety.

This multi-functional base plate is designed for use with EVT290S 290 mm square truss sections. Its integrated spacers offer unmatched flexibility for height adjustments and custom configurations, providing a reliable foundational piece for both permanent studio installs and portable touring rigs.

Key Features

• Integrated 60 mm (2.36 in) Spacers: Unique design allows for precision height adjustments and modular layout flexibility.
• Matte Black Powder-Coated Finish: Professional, anti-reflective surface ideal for stage, studio, and broadcast use.
• 290 mm Square Truss Compatibility: Designed specifically for the EVT290S conical truss ecosystem.
• Structural Alignment & Load Continuity: Maintains precise geometry and consistent load paths through the base transition.
• Secure Conical Connection System: Conical receivers and couplers secured with Pins and R-clips.
• Durable & Scratch-Resistant: High-grade 6082-T6 aluminum with a powder-coated shell that resists chipping and wear.
• Stealth Aesthetic: Minimizes visual impact and light reflections in professional environments.
• Modular & Reusable Design: Essential for complex studio grids and reconfigurable event builds.

Designed by Evolve Truss, the EVT290S-BBP60 Black is the premier choice for technicians who require a stealthy, stable, and highly adjustable ground support system for 290 mm square truss builds.

⚠️ Safety & Engineering Notice

❗ Critical Stability Information: This base plate is intended for ground support and stability. It is not designed for heavy ballast or high-leverage loads in outdoor or high-wind environments. Always consult a qualified engineer to determine if additional weighting or outriggers are required for your specific build height and load.

Important Guidelines for Safe Use:

• Never exceed the rated load capacity of the truss system or base plate.
• No loads shall be supported directly from truss connection points.
• Inspect the base plate before every use; do not use if bent, cracked, or deformed.
• Handle components with care—avoid dropping, dragging, or improper stacking.
• Assembly and installation must be performed only by trained and qualified personnel.
• Ensure all Couplers, Pins, and R-clips are correctly installed and fully secured.
• Account for all applicable forces, including dynamic and transverse forces such as wind loads.
• Do not mix truss components from different manufacturers.
• All truss structures must be reviewed and approved by a licensed professional engineer.

⚠️ Compatibility Warning for Mixed-Brand Builds

Crucial Steps for Safe Assembly:

• Verify all dimensions before integrating with other truss brands.
• Confirm conical connector type, node spacing, and system geometry.
• Mixing components without verification may compromise structural integrity and safety.
