Description
EVT290S-BP30RS Round Steel Base Plate – 30″ Diameter

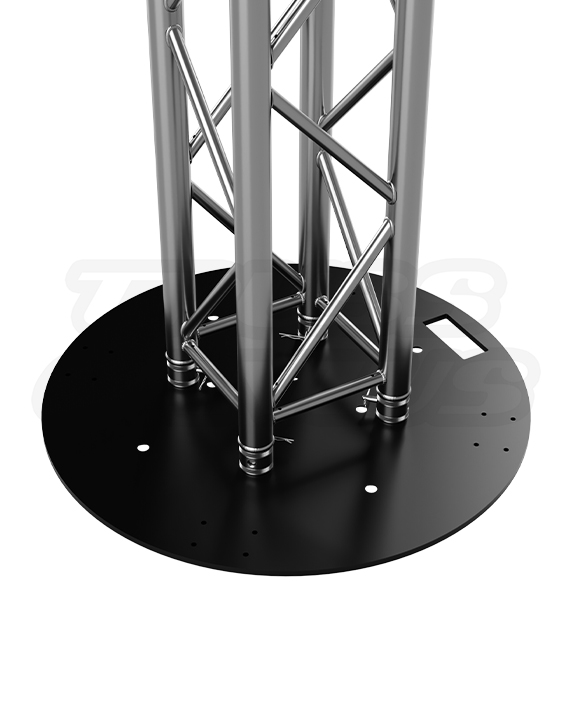

The EVT290S-BP30RS Round Stabilizing Base Plate is a 30-inch diameter steel base designed for use with the EVT290S, EVT12S, and EVT20S Square Aluminum Truss series. Built to provide reliable ground support, this plate helps stabilize vertical truss structures by distributing loads evenly while minimizing the risk of tipping. It features a laser-cut carry handle for easy lifting and placement during setup.
Why Choose a Round Base?
Unlike traditional square base plates that create sharp corners at pedestrian level, the round profile of the BP30RS offers a lower-risk footprint—especially in environments with foot traffic such as convention centers, trade shows, corporate events, and live performances. The absence of protruding corners helps reduce trip hazards, improves walkability around the structure, and provides a cleaner visual flow for audiences and crew.
Quality and Durability
Constructed from rugged Q235-grade steel, this base plate features a brushed texture with a durable Matte Black Powder Coat Finish, combining industrial toughness with a sleek, professional appearance.
Easy Assembly
The plate includes conical connector hardware for fast, secure truss integration. Its round footprint and matte black finish make it ideal for live events, studios, trade shows, and permanent installations.
Choose the EVT290S-BP30RS Round Steel Base Plate as your go-to ground support for small- and medium-duty square truss applications—engineered with precision by Evolve Truss.
Key Features
- 30″ Diameter Round Profile – Reduces trip hazards and improves foot traffic flow
- Q235 Steel Construction – Engineered for strength and long-term use
- Matte Black Powder Coat Finish – Scratch-resistant and professional appearance

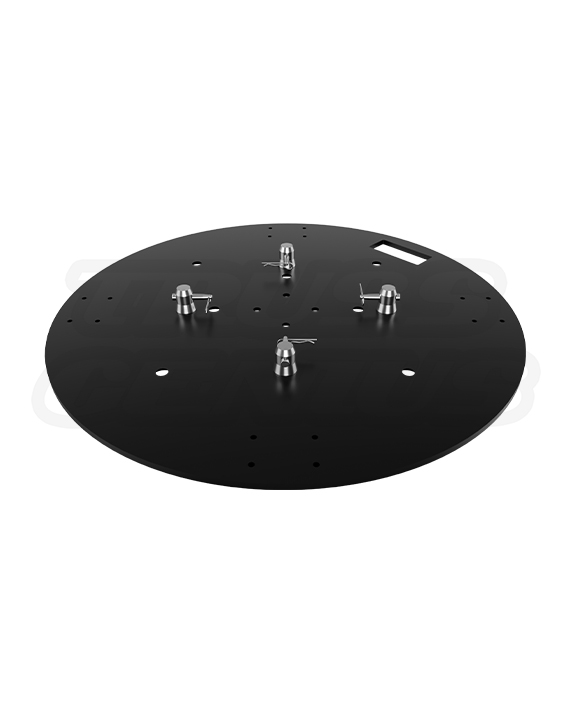

- Laser-Cut Handle – Integrated for easy transport and setup

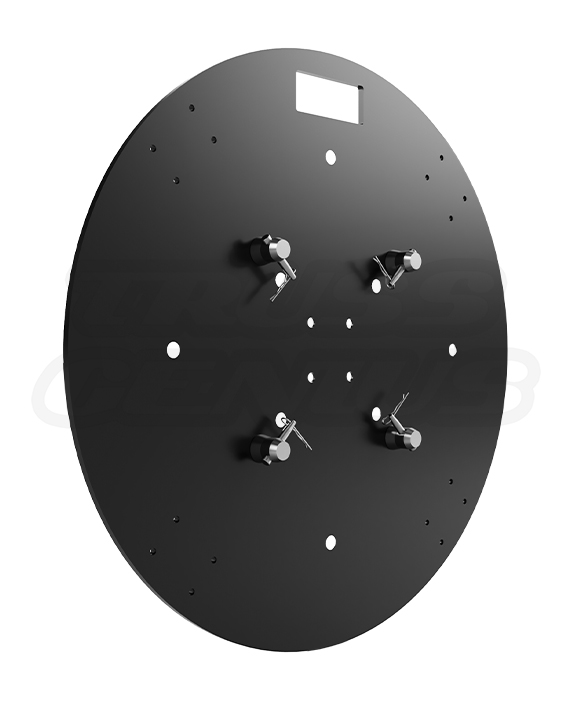

- Includes Conical Connector Hardware – Quick and secure truss attachment

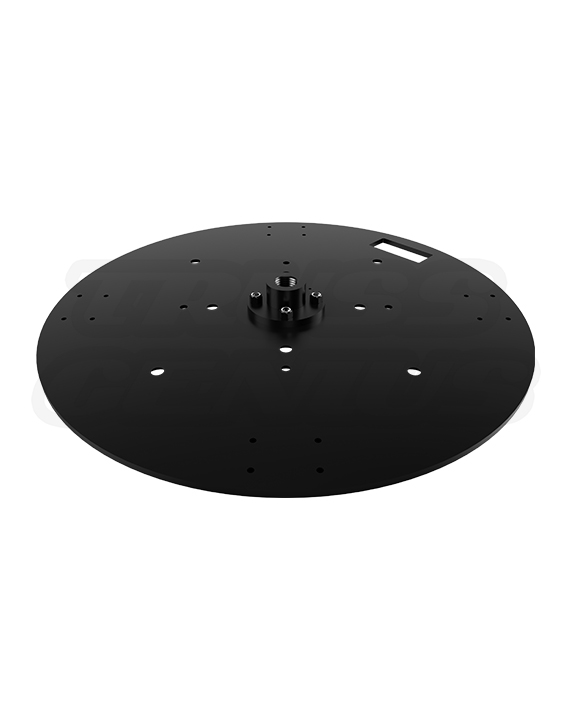

- Optional Flange Attachment – Supports 1.5″ Schedule 40 pipe for added flexibility
- Compatible With: EVT290S, EVT12S, EVT20S Square Truss
- Weight: 71.5 lb (32.43 kg) – Heavy-duty build for increased stability and load support
⚠️ CAD Resources Available
STEP & DWG Files Available – Engineers, designers, and project managers can request these files for seamless integration into CAD drawings and structural planning.
⚠️ Safety Notice
- Do not exceed the load capacity of the EVT290S-BP30RS.
- Never suspend loads from the truss connection point—use rigging rated for overhead suspension.
- Inspect the base plate prior to use. Remove damaged or defective items and label DO NOT USE.
- Do not drop, drag, or stack base plates without protection—handle with care.
- Truss system assembly should only be performed by trained personnel.
- Ensure all coupler pins and R-clips are properly secured before use.
- Engineering review is required for all structures. Consult a licensed professional engineer.
