32″x24″ Semi-Rounded Steel Truss Base Plate – Compatible with EVT290S, EVT12S & EVT20S

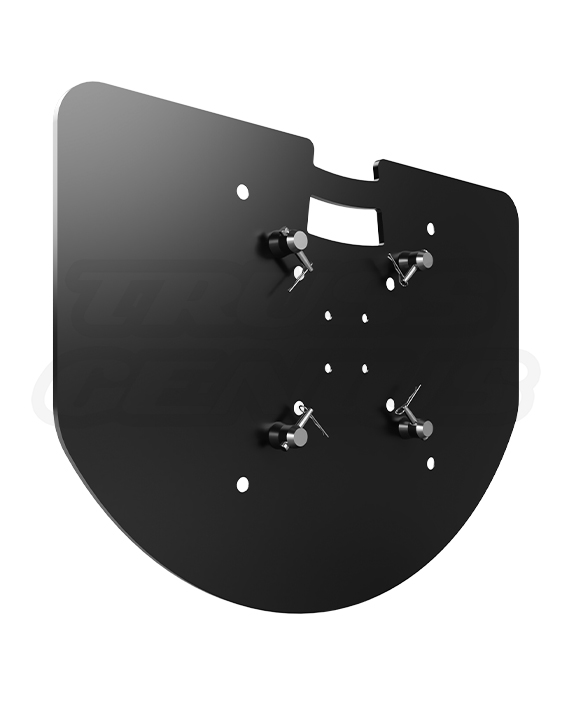

EVT290S-BP32X24S Steel Base Plate
Designed for EVT290S, EVT12S, and EVT20S Square Aluminum Truss Series
The EVT290S-BP32X24S is a heavy-duty steel base plate purpose-built for square aluminum truss systems. Engineered to stabilize upright structures and distribute vertical loads, it provides a secure and reliable foundation for both temporary and permanent truss installations.

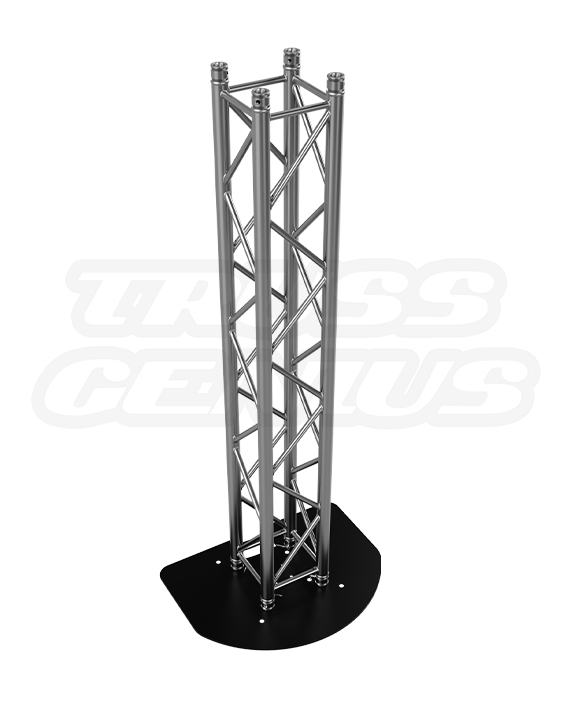

This semi-circular base features a rounded front and a flat rear edge, allowing for flush mounting against walls or backdrops—ideal for setups in tight or constrained spaces. The plate includes precision-drilled bolt patterns specifically aligned for EVT290S truss segments. While optimized for the EVT290S, the design is also compatible with EVT12S and EVT20S truss series. Please inquire for other compatibility options.

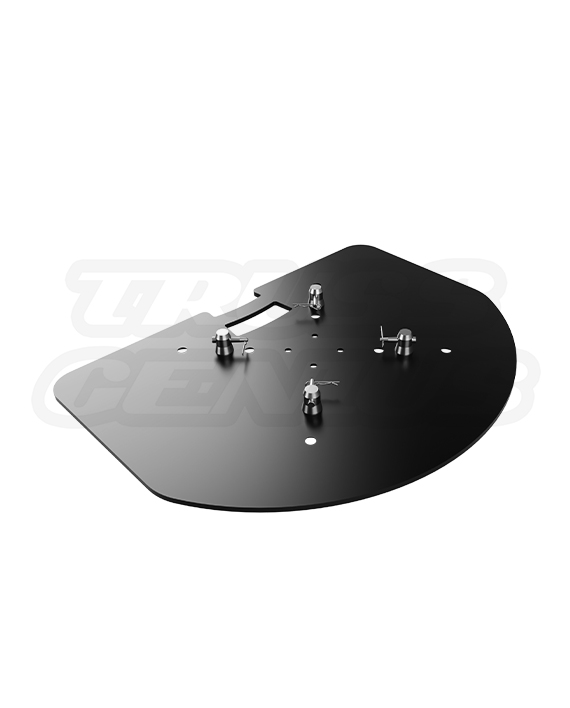

The semi-circular front isn’t just a visual detail—it’s a practical safety feature. By eliminating sharp corners common in square plates, it reduces tripping hazards and supports smoother foot traffic flow in high-traffic environments such as trade shows, studios, or backstage areas. It’s a subtle but important advantage when safety and crowd movement matter.
Constructed from 9mm thick Q235-grade steel, the base is finished with a sleek matte black powder coat for both durability and a professional appearance. A built-in rear handle adds convenience during transport and setup.
⚠️ Note: Due to its weight and size, this base plate should be handled by multiple individuals or with the assistance of a base cart for safe transport and setup.
Key Features
- Compatible With: EVT290S, EVT12S, and EVT20S Square Truss Systems
- Footprint: 32 in x 24 in with rounded front for reduced trip hazards
- Material: 9mm thick Q235-grade steel
- Finish: Matte black powder coat
- Transport: Rear laser-cut handle for easy handling

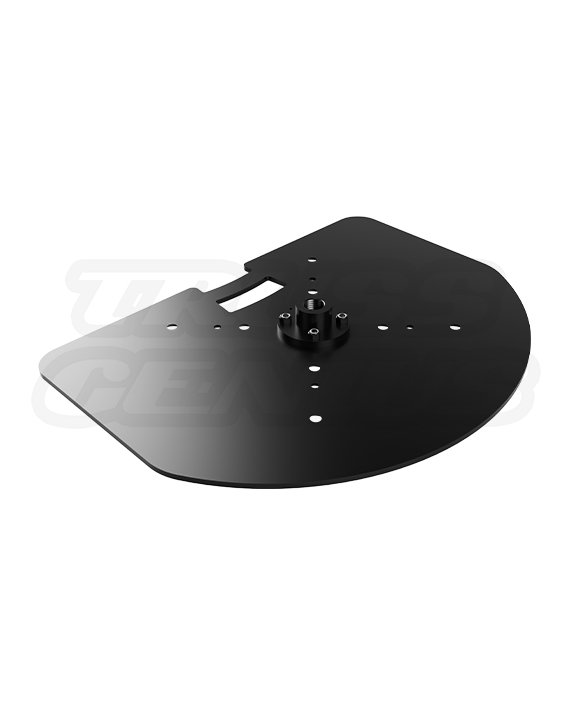

- Optional Flange Attachment: Supports 1.5″ Schedule 40 pipe for added flexibility
- Weight: 91 lb (41.5 kg) – Heavy-duty build for increased stability and load support
⚠️ Safety Notice
- Do not exceed the rated load capacity of the EVT290S-BP32X24S.
- Do not suspend loads from truss connection points—use correct rigging methods.
- Inspect thoroughly before use. Remove damaged items from service and label clearly as DO NOT USE.
- Do not drop, drag, or mishandle plates—this can affect leveling and safety.
- Ensure all bolts, pins, and accessories are properly secured before deployment.
- Installations should be completed by qualified professionals only.
- All systems should be reviewed by a licensed structural engineer.
STEP & DWG Files Available
Engineers, designers, and project managers: Request downloadable STEP and DWG files to streamline integration into CAD models and ensure alignment with your design specifications.
