Description
36″ Square Steel Truss Base Plate – Heavy-Duty Support for EVT290S, EVT12S & EVT20S Systems

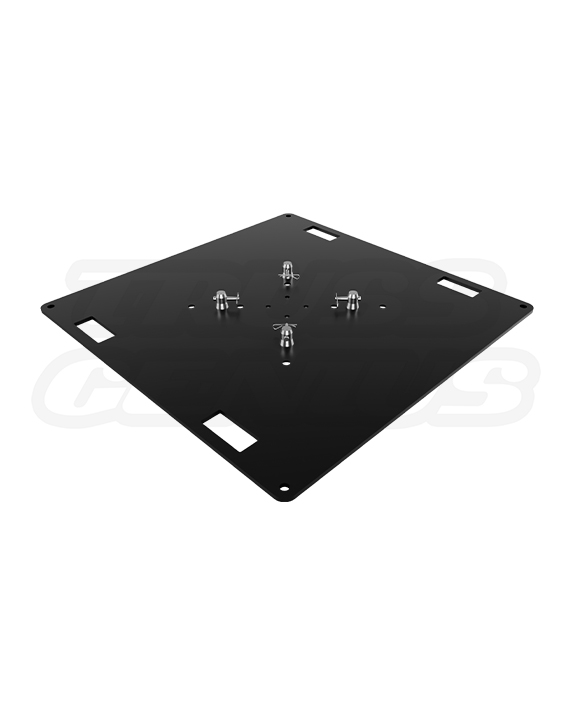

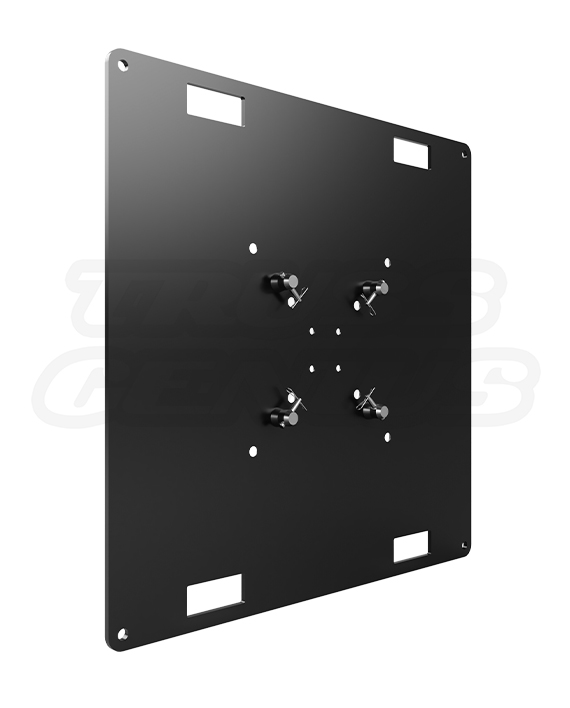

EVT290S-BP36S Steel Base Plate
Designed for EVT290S, EVT12S, and EVT20S Square Aluminum Truss Series
The EVT290S-BP36S is a heavy-duty steel base plate purpose-built for square aluminum truss systems. Engineered to stabilize upright structures and distribute vertical loads, it provides a secure and reliable foundation for both temporary and permanent truss installations.
This square base plate is designed with high load-bearing performance in mind. It includes precision-drilled bolt patterns specifically aligned for EVT290S truss segments. While optimized for the EVT290S, the design is also compatible with EVT12S and EVT20S truss series. Please inquire for other compatibility options.
Constructed from Q235-grade steel with a sleek matte black powder coat finish, it delivers strength, durability, and professional aesthetics. This plate is ideal for setups requiring rock-solid stability in high-traffic or outdoor environments. The design features four integrated laser-cut handles for easier lifting, positioning, and transport.
⚠️ Note: Due to its weight and size, this base plate should be handled by multiple individuals or with the assistance of a base cart for safe transport and setup.
Key Features
- Compatible With: EVT290S, EVT12S, and EVT20S Square Truss Systems
- Material: 9mm thick Q235-grade steel
- Finish: Matte black powder coat
- Handles: Four integrated laser-cut handles for safe lifting and transport

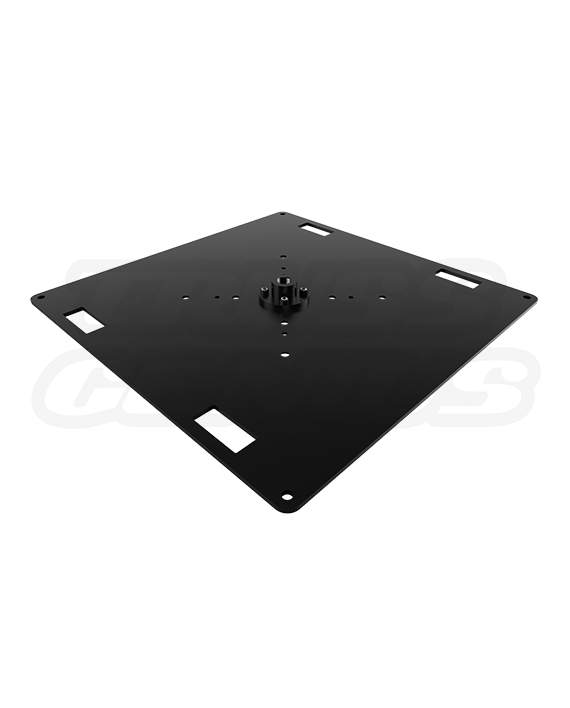

- Optional Flange Attachment: Supports 1.5″ Schedule 40 pipe for added flexibility
- Weight: 132.93 lb (60.3 kg) – Heavy-duty build for increased stability and load support
⚠️ Safety Notice
- Do not exceed the rated load capacity of the EVT290S-BP36S.
- Do not suspend loads from truss connection points—use correct rigging methods.
- Inspect thoroughly before use. Remove damaged items from service and label clearly as DO NOT USE.
- Do not drop, drag, or mishandle plates—this can affect leveling and safety.
- Ensure all bolts, pins, and accessories are properly secured before deployment.
- Installations should be completed by qualified professionals only.
- All systems should be reviewed by a licensed structural engineer.
STEP & DWG Files Available
Engineers, designers, and project managers: Request downloadable STEP and DWG files to streamline integration into CAD models and ensure alignment with your design specifications.
