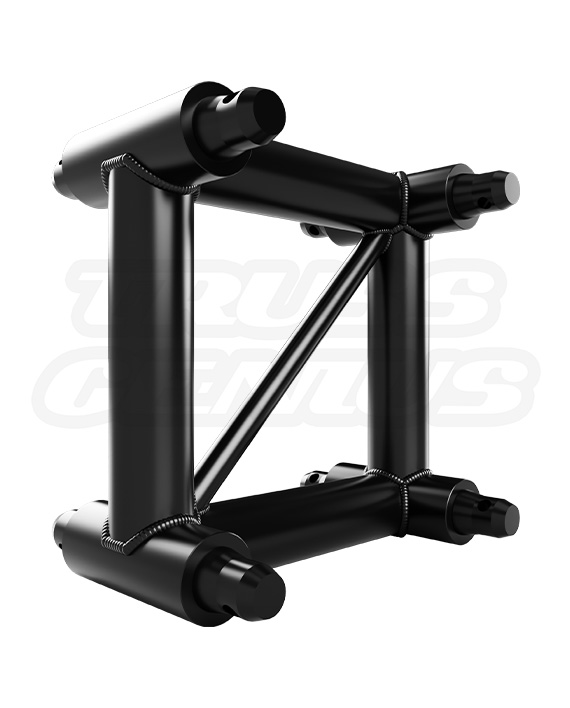

125mm Truss Spacer | Black Square Aluminum Truss Segment (EVT290X-125CS)

The EVT290X-125CS Black Square Aluminum Truss Spacer is a precision-engineered 125 mm (4.92 in) straight segment designed for 290 mm square conical aluminum truss systems. This short spacer is the perfect solution for fine-tuning grid dimensions, compensating for uneven venue measurements, or extending runs by small increments where a standard section won’t fit.

Function & Compatibility:

Manufactured from high-grade 6082-T6 aluminum alloy and finished in a durable Black Powder Coat, this spacer delivers dependable structural performance with a professional, non-reflective appearance. It features a secure conical connection system (receiver and coupler) and ships with all necessary Pins and R-clips for fast, repeatable assembly in production environments.

Key Features

• Precise 125mm Length: Adds exactly 4.92 inches to your truss run for critical spacing adjustments.
• Black Powder Coat: Satin black finish blends seamlessly into stage ceilings and dark environments.
• 290 mm Square Truss Compatibility: Compatible with EVT290S, F34, and most standard 290 mm square conical truss systems.
• Structural Integrity: Maintains load continuity across the connection points despite its short length.
• Secure Conical Connection: Includes Conical Couplers, Pins, and R-clips.
• Durable Construction: Built from 6082-T6 aluminum for long service life.

Designed by Evolve Truss, the EVT290X-125CS Black is compatible with 50 mm (1.97″) clamps, allowing seamless integration with rigging hardware.

⚠️ Safety & Engineering Notice

❗ Critical Load Rating Information: The load capacity of a truss span is generally determined by its longest unsupported length, not the spacers. However, adding multiple spacers can introduce deflection. Always consult applicable load tables and a qualified engineer when modifying truss spans.

Important Guidelines for Safe Use:

• Never exceed the rated load capacity of the truss system.
• Inspect all truss components before each use and remove damaged parts from service.
• Ensure all Couplers, Pins, and R-clips are correctly installed and fully secured.
• Assembly and installation must be performed only by trained and qualified personnel.
• Do not mix truss components from different manufacturers without verifying geometric compatibility.

⚠️ Compatibility Warning

Crucial Steps for Safe Assembly:

• Verify Dimensions: This is a 125mm spacer. Ensure this specific length meets your gap requirement.
• Check Wall Thickness: Ensure the main chord wall thickness matches your existing truss to maintain consistent load ratings.

⚠️ CAD Resources Available

STEP & DWG Files Available: Engineers, designers, and project managers can request these files for seamless integration into CAD drawings and structural planning.
