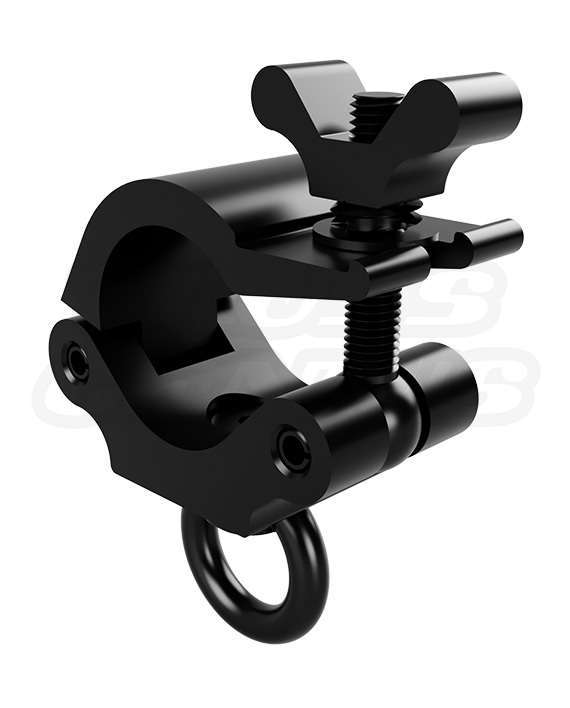

EVT50C-BEC — Black Medium-Duty 2-Inch Eye Clamp with Welded Eye Nut

The EVT50C-BEC is a black powder coat medium-duty 2-inch eye clamp with a welded M10 round eye hook for attaching shackles, round slings, and rigging lifting equipment to standard 2-inch (50mm) OD truss, tube, and pipe. The welded eye provides a dedicated loop attachment point for rigging hardware directly on the truss tube without a separate anchor — rated at tensile strength 9.81 kN, built from 6061-T6 aluminum alloy, finished in black powder coat, and TUV Nord Certified. This clamp is designed for static, non-moving, and non-swinging loads only — do not use for dynamic rigging, swinging fixtures, or any application where the attached load moves during operation.

Function and Compatibility:

The EVT50C-BEC clamps to any 48mm to 51mm OD round tube or pipe through the standard wing nut collar assembly. Once the collar is secured to the tube, the M10 round eye hook provides an attachment point for shackles, Gac Flex round slings, and other static rigging hardware. The eye is welded directly to the clamp body — a fixed, non-rotating attachment point sized for standard M10-compatible rigging hardware. The black powder coat finish integrates with dark overhead structures and stage environments where silver hardware would create visible contrast. Compatible with EVT290S, EVT290I, F34 series truss main chords, and standard Schedule 40 aluminum pipe in the 48mm to 51mm outer diameter range.

Key Features

• Welded M10 Round Eye Hook: Factory-welded eye provides a dedicated attachment point for shackles, round slings, and static rigging hardware — no separate anchor required on the truss tube.
• Static Load Only: Designed exclusively for non-moving and non-swinging loads. Not rated for dynamic rigging, pendulum loads, or any application where the attached load moves during operation.
• Black Powder Coat Finish: Non-reflective dark finish integrates with black truss systems and dark overhead environments.
• Tensile Strength 9.81 kN: Medium-duty rating, TUV Nord Certified — for static rigging attachment applications within the rated tensile capacity.
• 6061-T6 Aluminum Body: High-strength structural aluminum construction.
• S45C Carbon Steel Hardware: High-strength S45C carbon steel fasteners for reliable long-term clamping performance.
• TUV Nord Certified: Independently tested and certified load ratings.
• Wing Nut Closure: Tool-free collar tightening — open, seat, and lock without wrenches or hex keys.

Assembly Instructions

1. Release the wing nut by turning it counterclockwise to release the bolt and open the collar.
2. Place the EVT50C-BEC on the truss, tube, or pipe and close the collar.
3. Put the bolt back in place with the washer and wing nut above the collar.
4. Make sure the EVT50C-BEC is located in its proper place on the truss, tube, or pipe before tightening the wing nut.
5. Turn the wing nut clockwise to tighten and secure the EVT50C-BEC into place.

Safety and Rigging Notice

Critical Rigging Guidelines:

• Static Loads Only: This clamp is rated for non-moving and non-swinging loads only. Do not use for dynamic rigging, swinging loads, pendulum applications, or any configuration where the attached load moves during operation.
• Load Rating: Do not exceed the tensile strength rating of the EVT50C-BEC or the load capacity of the truss system it is installed on.
• Eye Hook Loading: Apply loads in-line with the eye hook axis only. Do not apply side loads or angular loads to the eye that fall outside the rated configuration.
• Inspection: The EVT50C-BEC should be fully inspected before every use, including the welded eye for deformation, cracking, or weld defects. In the occurrence of any damage or defect, the clamp should not be used.
• Secondary Safety: The use of safety cables is recommended for maximum security on all overhead applications.
• Professional Review: The purchase of this product does not authorize or approve a specific installation or use. A licensed professional engineer shall review all structures, lighting plots, or other clamp uses.

Technical Resources and Project Support

Need load tables, CAD files, or engineering documentation for this product? Contact the Evolve Truss team — we'll get you what you need.

Disclaimer and Guidance Statement: The purchase of any product shall not be construed as authorizing or approving a specific installation or usage. A licensed professional engineer shall review all structures, lighting plots, or any other product uses. While exhaustive efforts have been undertaken to ensure the precision of this information, Evolve Truss Worldwide, LLC hereby disclaims any and all liability for errors. These drawings are intended solely for the purpose of providing guidance and should not be construed as definitive representations.
