10x10 Trade Show Exhibit Display Booth | EVT290S-Arvada

10x10 Trade Show Exhibit Display Booth | EVT290S-Arvada

Original price was: $14,036.00.Current price is: $7,018.00.

10x10 Trade Show Truss Booth | Arch Crossover Design – Square Truss Display System

Dimensions & Specs
Footprint: 10 ft x 10 ft (3.04 m x 3.04 m)
Overall Height: 9.84 ft (3 m)
Truss Profile: 11.41 in (290 mm) Square Truss
Coverage: ~100 sq ft
Type: Complete "Arch Crossover" Booth System

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) OD / 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing / 0.08 in (2 mm) Wall Thickness
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV Certified
Compatibility: Fits all standard 290mm / F34 Truss Systems
Weight: 308 lb (139.70 kg)

In stock

SKU: EVT290S-TSB-10x10-ARVADA Category:

EVT290S Cross-Arch Booth System Knowledge Center

Turn a 10x10 Footprint into a Branded Architectural Moment.
Four Intersecting Truss Arches Create an Open, Vaulted Exhibit Presence.

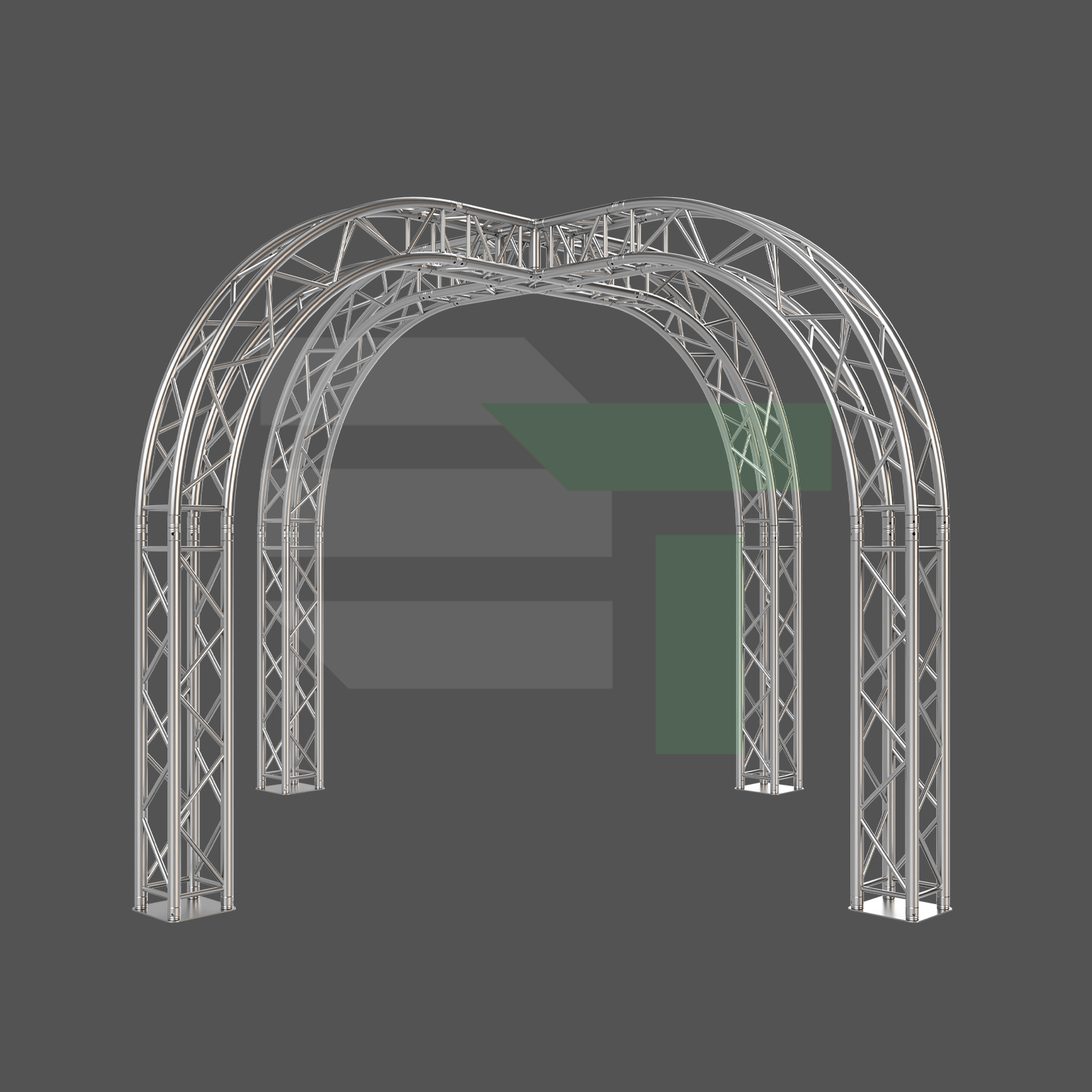

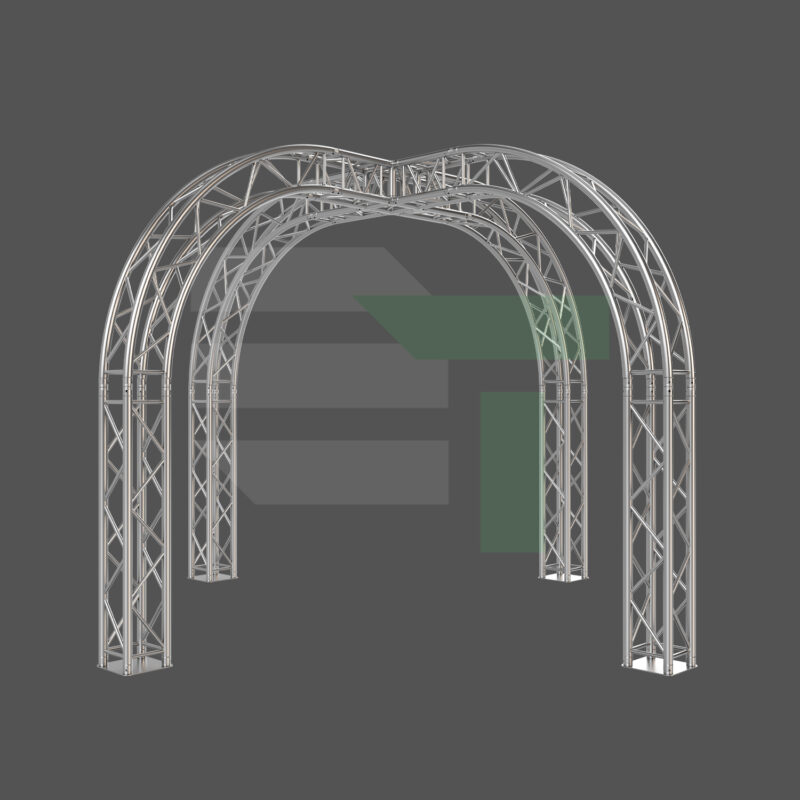

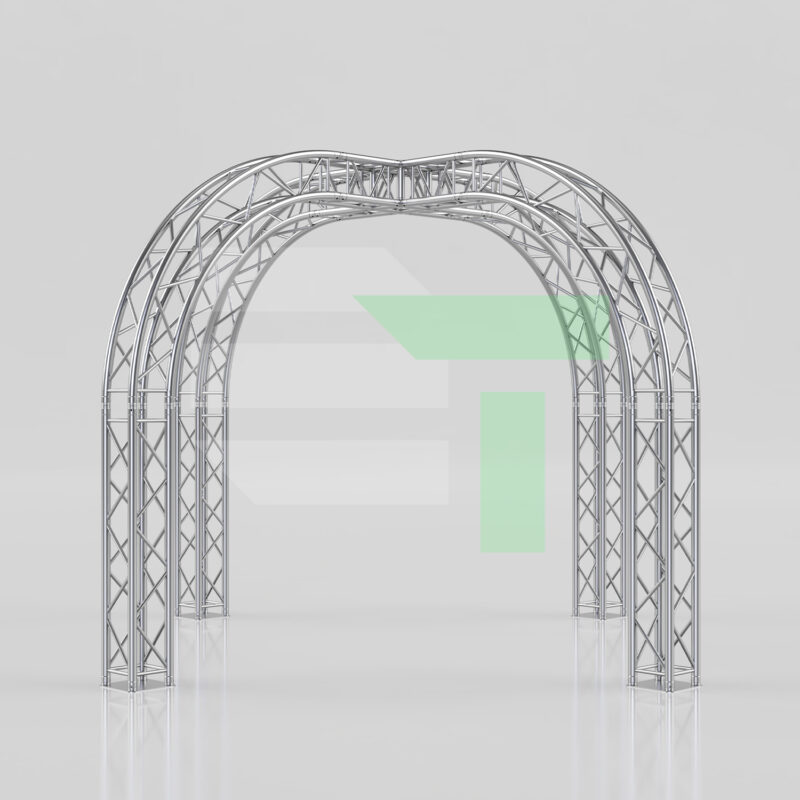

The EVT290S-Arvada is a premium 10x10 cross-arch truss booth built from EVT290S 290 mm square aluminum truss. Four intersecting curved segments create a vaulted, dome-like structure with open sightlines, strong vertical clearance, and 360-degree visibility for trade shows, entrances, expos, branded installations, and experiential environments. The kit includes 16 sets of conical connecting hardware.

System Facts

ModelEVT290S-Arvada
SKUEVT290S-TSB-10x10-ARVADA
Footprint10x10 ft
Overall Height9.84 ft / 3 m
DesignCross-Arch Dome
System Weight308 lb / 139.71 kg
10x10 ftBooth Footprint
Cross-ArchStructural Design
308 lbSystem Weight
50 mmMain Chords
16 SetsConnecting Hardware

System Overview

A Cross-Arch Structure Designed to Be Seen from Every Direction Built for Open Sightlines, Vertical Clearance, and High-Impact Branding.

The EVT290S-Arvada combines a 10x10 footprint, 9.84 ft overall height, and four intersecting curved truss segments in a distinctive cross-arch configuration.

Cross-Arch Dome
Four intersecting curved truss segments create a vaulted architectural roofline over the booth.
Open 360-Degree Visibility
The open design maintains sightlines from every side for island exhibits, entrances, and experiential installations.
Vertical Clearance
The curved structure creates an elevated center area for lighting, signage, and branded display elements.
Modular EVT290S Construction
The system uses EVT290S square truss components and standard conical connection hardware.

Common Applications

Designed for Trade Shows and Branded Environments.

01
Trade Show Exhibits
Create a branded overhead structure for 10x10 exhibit spaces.
02
Product Displays
Frame product demonstrations, shelving, graphics, and display counters.
03
Branded Activations
Support banners, signage, lighting, and branded visual elements.
04
Temporary Retail
Build pop-up and promotional environments with reusable truss components.
05
Corporate Events
Create registration, sponsor, demonstration, or hospitality structures.

Who It’s For

Built for Teams That Need A Reusable 10x10 Display System.

Exhibit Builders
For modular client booths and repeat trade-show installations.
Marketing Agencies
For branded activations, launches, and promotional environments.
Event Production Companies
For corporate displays, sponsor areas, and temporary event structures.
Rental Companies
For repeat-use 10x10 booth inventory that can be deployed across multiple events.
Retail Brands
For pop-up shops, product showcases, and temporary branded spaces.
In-House Exhibit Teams
For companies attending multiple events with reusable components.

System Design

Four Intersecting Arches. One Distinctive 10x10 Cross-Arch Structure.

The supplied EVT290S-Arvada kit is designed to assemble as the specified cross-arch dome configuration. Height adjustments or larger structures require additional EVT290S components and a revised engineering review.

Specified Cross-Arch Design
The included components create the complete Arvada 10x10 arch-crossover booth.
Four Curved Segments
The intersecting arches meet over the center to create the vaulted dome profile.
Height Adjustment Potential
Additional compatible EVT290S straight sections may be selected for revised height configurations.
Future Expansion
Larger footprints or modified designs require additional components and a new system design.

Included Components

Complete Cross-Arch Structure with 16 Sets of Conical Hardware.

The system includes the EVT290S truss components and 16 sets of connecting hardware: 16 couplers, 32 coupler pins, and 32 R-clips.

EVT290S Truss Components
Curved and straight EVT290S truss components for the four-arch dome structure.
Base Components
Base pieces required to complete the freestanding booth.
16 Sets of Hardware
Sixteen sets of connecting hardware for the conical connections.
16 Couplers, 32 Pins, 32 R-Clips
16 couplers, 32 coupler pins, and 32 R-clips are included.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT290S-Arvada
SKUEVT290S-TSB-10x10-ARVADA
BrandEvolve Truss
System Type10x10 Square Aluminum Truss Booth

Dimensions and Weight

Overall Size

Booth Footprint10x10 ft / 3.05x3.05 m
DesignArch Crossover
CoverageApproximately 100 sq ft
Overall Width9.84 ft / 118.11 in / 3 m
Overall Depth9.84 ft / 118.11 in / 3 m
Overall Height9.84 ft / 118.11 in / 3 m
System Weight308 lb / 139.71 kg

Truss Construction

EVT290S System

Truss ProfileEVT290S 11.42 in / 290 mm Square
Main Chords1.96 in / 50 mm OD, 0.08 in / 2 mm Wall
Brace Tubing0.79 in / 20 mm, 0.08 in / 2 mm Wall
MaterialEN AW-6082 T6 Aluminum
FinishBrushed Aluminum
CertificationTÜV Certified

Assembly and Compatibility

System Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips
Included Hardware16 Sets: 16 Couplers, 32 Coupler Pins, 32 R-Clips
Assembly Crew3 to 4 People
Assembly ToolSmall Steel Hammer
Clamp CompatibilityStandard 50 mm / 2 in Clamps
Warranty1-Year Limited Manufacturing-Defect Warranty

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The EVT290S-Arvada uses 290 mm square truss, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290S Compatibility
Integrates with compatible EVT290S straight sections, corners, and expansion components.
F34 Compatibility
Compatible with matching F34 290 mm square truss and conical hardware.
Standard 290 mm Square Systems
Verify receiver spacing, connection dimensions, and engineering data before combining systems.
50 mm Clamp Compatibility
Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Build the Crown First. Then Add the Vertical Supports.

The system is typically assembled by three to four people using a small steel hammer for the tapered-pin conical connections.

01 — Organize Components
Lay out straight sections, curved sections, bases, couplers, pins, and R-clips by position.
02 — Build the Overhead Crown
Assemble the upper arch structure at floor level.
03 — Install Base Components
Position and secure the bases according to the specified 10x10 booth design.
04 — Add Vertical Sections
Raise the crown in a controlled sequence and install the vertical supports.
05 — Lock Every Connection
Verify all couplers, tapered pins, and R-clips are fully seated.
06 — Final Inspection
Confirm plumb, level, ballast, clearances, and attachment security before use.

Safety and Engineering

Exhibit Loads, Ballast, and Overhead Elements Must Be Evaluated as One System.

Final capacity depends on the booth configuration, attached signs, lighting, graphics, monitors, rigging points, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT290S-compatible components and connection hardware.
Use properly rated 50 mm clamps for the 50 mm main chords.
Do not apply loads directly at truss connections unless specifically allowed by the engineering data.
Evaluate all graphics, monitors, lighting, shelving, and suspended elements before installation.
Provide ballast or anchoring suitable for the actual booth configuration and venue conditions.
Assembly should be performed by trained personnel following an approved installation procedure.

System Questions

Frequently Asked Questions

What is included, and what do I need to assemble it?

The system includes the EVT290S truss components and 16 sets of connecting hardware: 16 couplers, 32 coupler pins, and 32 R-clips. Assembly takes three to four people and a small steel hammer to seat and remove the tapered pins.

Can the booth be built in other configurations?

No. The EVT290S-Arvada is designed to assemble in one specified 10x10 booth configuration. Height adjustments or larger structures require additional EVT290S components and a revised engineering review.

What clamps fit this truss?

Standard 50 mm / 2 in clamps fit the EVT290S 50 mm main chords. Confirm the clamp rating for your application.

Are CAD files and engineering available?

STEP and DWG files are available upon request. An engineering report is available as a separate service and should be requested during purchase.

Need a reusable 10x10 truss exhibit?

Contact us for assembly support, graphics and lighting selection, additional EVT290S components, engineering, CAD files, and quantity pricing.

Contact UsRequest a Quote
