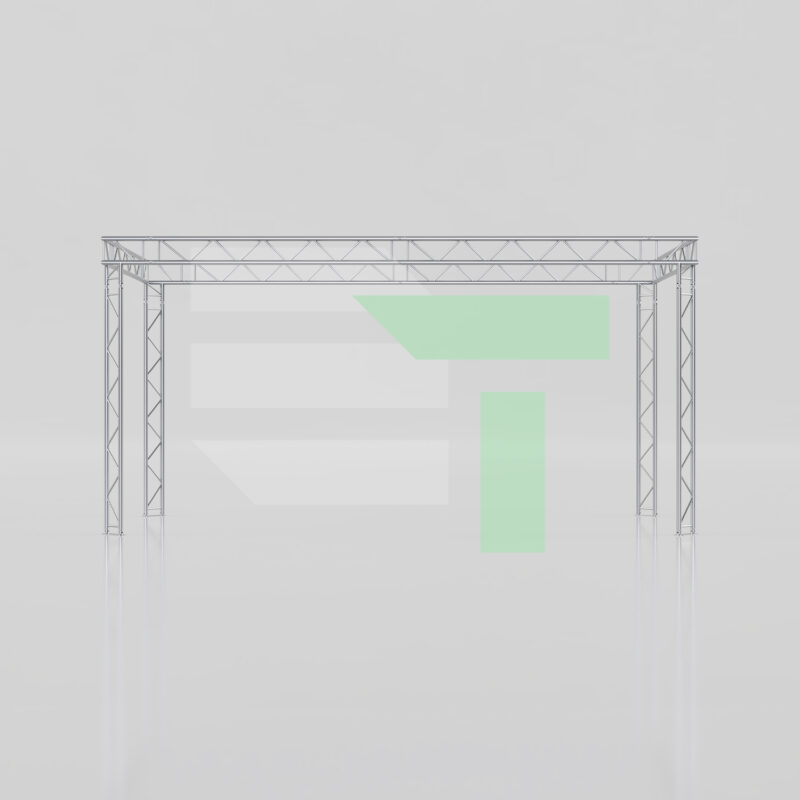

10x20 Trade Show Exhibit Display Booth | EVT290I-Bodega
$8,264.00 Original price was: $8,264.00.$4,132.00Current price is: $4,132.00.
Medium-Duty I-Beam Aluminum Truss Booth
Create up to 2 (two) different booth configurations
Truss System Dimensions
Overall Truss System Height: 9.84 ft (3 m)
Overall Truss System Width: 9.84 ft (3 m)
Overall Truss System Length: 19.68 ft (6 m)
Approximate Coverage: 200 sq ft
Truss Dimensions
Overall Truss Width: 11.41 in (290 mm)
Main Tubing: 1.96 in (50 mm) Outer Diameter Tubing
0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing
0.078 in (2 mm) Wall Thickness
Construction & Features
Material Type: Aluminum Alloy EN AW-6082 T6
Surface: Aluminum Brush Finish
Certification: TUV certified
Included: Connecting hardware
Weight: 208 lb (94.34 kg)
In stock
EVT290I Modular Trade Show Exhibit Design System
Modular Trade Show Exhibit Design System.
10x10 to 10x20 Expandable EVT290I-Bodega Truss Booth.
The EVT290I-Bodega is a modular trade show exhibit design system built from 290 mm aluminum I-Beam truss. Configure the system as a 10x10 trade show booth for smaller events, build a 10x20 exhibit when you need more display space, or expand with compatible EVT290I components as your event program grows. Create a reusable branded environment for graphics, lighting, signage, product demonstrations, retail activations, and repeat event use.
Booth Facts
Product Overview
One Modular Booth System for More Than One Exhibit Footprint.
The Bodega is built around EVT290I I-Beam truss, a two-chord ladder-style profile that stacks flatter than square box truss for efficient storage and transport. Use the system for a 10x10 booth when event space is limited, configure it as a 10x20 exhibit for a larger presentation area, or plan an expanded layout with compatible EVT290I components.
Trade Show Exhibit Design
Design a Reusable Exhibit That Grows With Your Event Program.
Trade show exhibit design is not limited to one fixed booth shell. The modular Bodega platform lets you adapt the core truss system for a 10x10 footprint, a 10x20 exhibit, updated graphics, different lighting plans, product displays, and evolving brand needs. Every alternate or expanded layout should be documented and reviewed for the final installed components and loads.
Common Applications
Built for Trade Show Exhibit Design, Displays, and Branded Environments.
Select the EVT290I-Bodega where a modular trade show exhibit system supports the planned footprint, visitor flow, brand presentation, and installed display components.
Why I-Beam Truss
A Flat-Stacking Truss Profile for Portable Exhibit Logistics.
EVT290I is a 290 mm I-Beam or ladder-style aluminum truss. Its two main chords and diagonal rungs create a lower-profile member than square box truss, helping the booth pack and stack efficiently between events.
Included Components
A Complete Truss Structure and Confirmed Connection Hardware.
The Bodega kit includes EVT290I truss components, bases, corners, and conical connection hardware for the documented system. Confirm the current packing list and technical drawing before assembly.
Technical Reference
EVT290I-Bodega Specifications.
Identification
Booth System
Dimensions
Documented 10x20 Configuration
Truss Construction
EVT290I System
Included Hardware
Connection Supply
System Compatibility
EVT290I and Matching 290 mm I-Beam Conical Truss Systems.
The Bodega uses EVT290I 290 mm I-Beam truss and matching conical connection hardware. Compatible EVT290I components can support an alternate or expanded exhibit design, but nominal size or apparent physical fit does not independently establish compatibility, capacity, or approval for a revised booth structure.
Assembly Overview
Build the Planned Overhead Frame First. Then Add the Vertical Supports.
The Bodega is typically assembled by three to four people using a steel hammer for tapered-pin conical connections. Follow the current technical drawing, packing list, and manufacturer instructions for the selected configuration.
Safety and Engineering
Exhibit Loads, Bases, and Overhead Elements Must Be Evaluated as One System.
The supplied kit is intended for its documented Bodega booth configuration. Alternate 10x10 layouts, expanded exhibit designs, added banners, lighting, signage, displays, clamps, accessories, or altered layouts change the completed system and require review using current manufacturer documentation and qualified technical guidance. Do not use damaged, incomplete, or improperly oriented components.
Trade Show Exhibit Design Questions
EVT290I-Bodega Frequently Asked Questions.
Can the EVT290I-Bodega be used as a 10x10 trade show booth?
The EVT290I-Bodega is a modular truss system that can be planned for a 10x10 exhibit footprint or the documented 10x20 configuration. Confirm the selected layout and component arrangement before assembly.
Can the system be expanded beyond a 10x20 booth?
Compatible EVT290I components can support a future expanded exhibit design. The revised configuration requires its own component selection, layout documentation, installed-load plan, and qualified technical review.
What connection hardware is included?
The documented 10x20 system includes 22 conical couplers, 52 tapered coupler-pins, and 52 r-clips.
How many people are typically needed for assembly?
The documented typical assembly crew is three to four people.
What tool is required for the connections?
A small steel hammer is used to seat tapered pins in the conical connection system.
Design a Modular Trade Show Exhibit?
Contact Evolve Truss for exhibit layout guidance, compatible components, technical drawings, booth expansion planning, and project support.
