Name: EVT12S‑Block Black — 12"×12" Heavy‑Duty 6‑Way Corner Block for End‑Plated Box Truss
Brand: Evolve Truss
SKU: EVT12S-Block-Black
Price: 819.00 USD
Availability: InStock

EVT12S System Knowledge Center

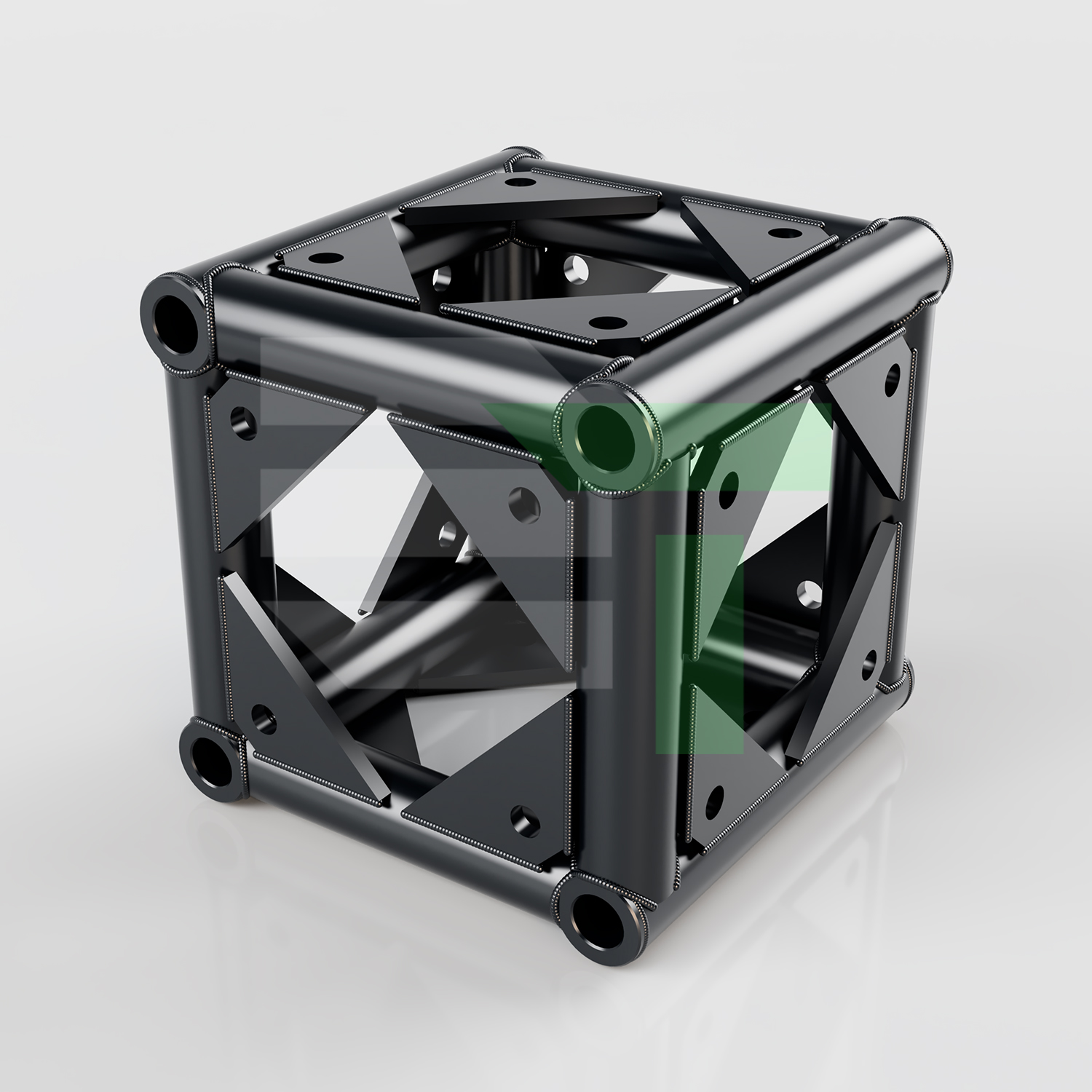

6-Way Black Square Box Truss Corner Block.
A Six-Face Black Block for 12-Inch End-Plated Truss Systems.

The EVT12S-Block-Black is a matte black aluminum six-way corner block for EVT12S and 12-Inch End-Plated Truss Systems. It provides connection faces along the X, Y, and Z axes at a single point. Allowable loading depends on the complete system, including span, supports, connections, orientation, and applied loads.

Product Facts

Model / SKUEVT12S-Block-Black

Product TypeBlack 6-Way Corner Block

Overall Size12.80 x 12.80 x 12.80 in / 325 x 325 x 325 mm

MaterialEN AW-6061-T6 Aluminum

FinishMatte Black Powder Coat

Weight35 lb / 15.88 kg

6-WayConnection Faces

12 inTruss Profile

325 mmCube Dimension

35 lbBlock Weight

2 SetsConnecting Hardware

Product Overview

One Central Black Block with Six Connection Faces.

This corner block joins end-plated 12-inch box truss at a single point. It is built from EN AW-6061-T6 aluminum with a matte black powder coat finish. Evaluate all loading and connection requirements at the completed-system level.

Six-Way Connection

Provides connection faces along the X, Y, and Z axes.

Matte Black Powder Coat

A matte black powder coat finish.

EN AW-6061-T6 Aluminum

Aluminum alloy construction.

End-Plate Connection

End-plated nut-and-bolt connection format.

Application Uses

For Black End-Plate Truss Systems Needing A Six-Way Corner.

This matte black six-way block may be specified within completed end-plate box truss systems for stage, studio, projection, theater, and touring applications. Confirm the completed system’s configuration, supports, connections, orientation, attachment points, environmental conditions, and applied loads before use.

Dark-Stage Corner Frames

For corner connections in stage structures that specify matte black components.

Studio and Broadcast Corners

For production frames built from standard 12-inch end-plated truss.

Projection Screen Frames

For project-specific screen and display frames subject to completed-system engineering review.

Black-Box Theater Rigs

For theater structures where a multi-axis black connection point is specified.

Touring Corner Inventory

For touring inventories that include black six-way corner blocks.

Included Hardware

Supplied with Two Hardware Sets for Block Connections.

Two sets of connecting hardware are included with the block. Confirm fastener requirements at every actual joint, including bolt grade, length, condition, engagement, and the applicable manufacturer tightening procedure.

2 Sets of Hardware

Two sets of connecting hardware.

Fastener Type

Confirm bolt grade, length, and condition for each connection.

Fastener Engagement

Confirm adequate engagement at every joint.

Connection Count

Account for hardware at each joint in the complete system.

Technical Reference

EVT12S-Block-Black Corner Block Specifications.

Identification

Product Details

Model / SKUEVT12S-Block-Black

BrandEvolve Truss

Product TypeBlack 6-Way Corner Block

Warranty1-Year Limited Manufacturing-Defect Warranty

Dimensions

Overall Size

Width12.80 in / 325 mm

Height12.80 in / 325 mm

Depth12.80 in / 325 mm

Weight35 lb / 15.88 kg

Material and Tubing

Construction

MaterialAluminum Alloy EN AW-6061-T6

Main Tubing1.96 in / 50 mm OD, 0.12 in / 3 mm Wall

Brace Tubing1.0 in / 25.4 mm

FinishMatte Black Powder Coat

Connection Context

System Interface

Connection TypeEnd-Plated Nut and Bolt

Included Hardware2 Sets of Connecting Hardware

CompatibilityEVT12S and 12-Inch End-Plated Truss Systems

CertificationTÜV Certified

Fit NoticeExact fit with other systems is not guaranteed

System Compatibility

EVT12S and 12-Inch End-Plated Truss Systems. Verify Every Connection.

The EVT12S-Block-Black is designed for EVT12S and 12-Inch End-Plated Truss Systems. Exact fit with other systems is not guaranteed. Before combining components, verify end-plate dimensions and thickness, bolt-hole positions, chord alignment, hardware, fastener engagement, and completed-joint seating.

System Match

Confirm the system uses a standard 12-inch end-plated format.

End Plates

Compare plate dimensions and bolt-hole positions.

Hardware

Confirm appropriate fasteners and engagement.

Completed Joint

Inspect alignment and full seating before use.

Assembly Overview

Align Each Face. Install and Check Every Fastener.

Assembly should be performed by personnel qualified for the truss system in accordance with applicable manufacturer requirements. This outline provides neither torque values nor installation approval.

01 — Inspect

Check the block, plates, holes, finish, and hardware for damage.

02 — Align

Bring compatible end plates to the block face without forcing distorted parts.

03 — Install Hardware

Fit specified fasteners at every connection with adequate engagement.

04 — Tighten

Follow the applicable manufacturer fastener procedure.

05 — Check Seating

Confirm required hardware and full plate seating.

06 — Inspect Before Service

Review the completed truss system and supports before loading.

Safety and Engineering

A Corner Block Adds Connection Points. It Does Not Increase Truss Capacity.

Allowable loading depends on the complete truss system, including span, supports, orientation, joints, suspension method, and applied loads. Suspended, load-bearing, dynamic-load, and complex applications require qualified structural or entertainment-rigging review. No stand-alone capacity value or torque value is provided here.

Inspect the block, plates, bolt holes, hardware, and connected truss before every use.

Remove any component with cracks, bends, elongated holes, plate deformation, damaged welds, or substantial finish damage from service.

Install and tighten all required fasteners using the applicable manufacturer procedure.

Do not support loads directly from the block’s connection points without approval for the complete truss system.

Verify connection interfaces and completed-system suitability before combining different systems.

Licensed structural-engineer review is required for every truss system.

Have a competent person perform a documented inspection at least annually and remove unsafe parts from service.

Corner Block Questions

EVT12S-Block-Black Frequently Asked Questions.

What is a black six-way corner block used for?

It joins end-plated 12-inch box truss from up to six directions along the X, Y, and Z axes at a single point, in matte black. Typical jobs include dark-stage corner frames, studio and broadcast corners, projection screen frames, black-box theater rigs, and touring corner inventory.

Does it include hardware for all six faces?

It includes two sets of connecting hardware. Count the connections in your completed system and confirm you have the hardware needed at every face you use.

Does the black corner block have its own load capacity?

No stand-alone capacity value is provided. Allowable loading depends on the complete system, including span, supports, joints, orientation, and applied loads, so have a licensed structural engineer review the complete configuration before use.

How heavy is the black corner block, and what is it made of?

It is a 12.80 in / 325 mm cube that weighs 35 lb / 15.88 kg. It is built from EN AW-6061-T6 aluminum with a matte black powder coat, is TÜV certified, and carries a 1-Year Limited Manufacturing-Defect Warranty. Use a safe lifting method when you place it overhead.
