EVT290A-CS10 | 10mm Coupler Spacer for 290mm Truss

Dimensions & Specs
Spacer Length: 0.39 in (10 mm)
Outer Diameter: 1.96 in (50 mm) (Matches standard truss tubing)
Function: Expands truss length for custom measurements and adjustments

Construction
Material Type: Aluminum Alloy EN AW-6061 T6
Type: Double-Ended Male Conical Coupler
Compatibility: Fits standard 290mm Truss Conical Connection points

Finish & Features
Surface: Aluminum Brush Finish
Included: 10mm Spacer Coupler Only
Note: Coupler Pins and Cotter Pins are NOT included
Weight: 0.40 lb (0.18 kg)

In stock

SKU: EVT290A-CS10 Categories: , , ,

EVT290S Truss Systems Knowledge Center

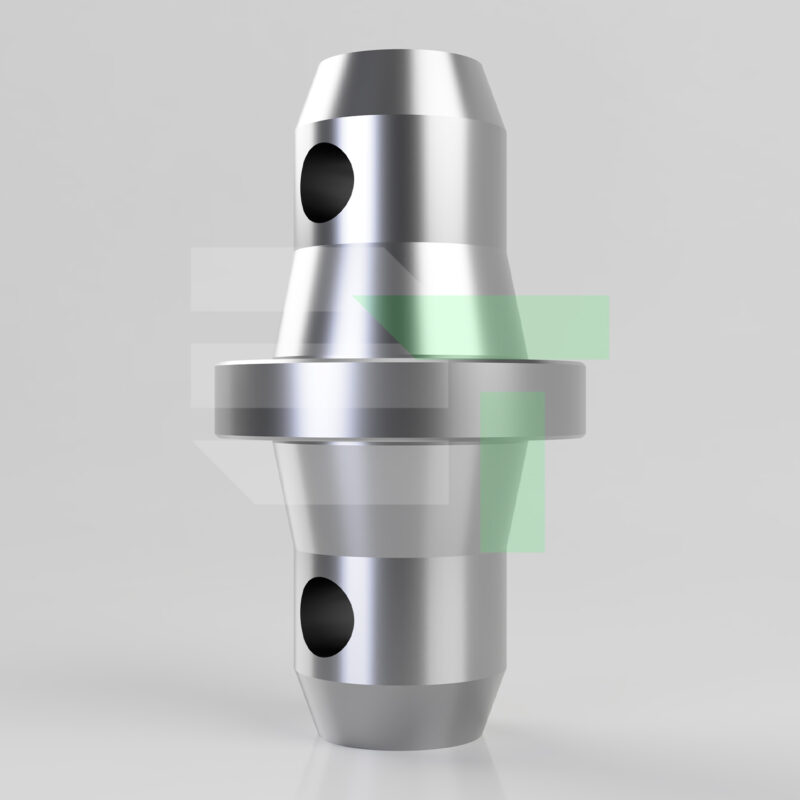

EVT290A-CS10 10 mm Male Truss Coupler Spacer.
For Adjusting Compatible 290 mm Conical Truss Connections.

The EVT290A-CS10 is a double-ended male conical spacer that adds 10 mm / 0.39 in at one compatible connection point in a 290 mm truss system. Use it to address a verified 10 mm measurement difference without modifying a truss section. The spacer changes one connection; it is not a truss section, a load point, or an independent support. The completed modified structure requires review for its actual support, loading, and engineering requirements.

Product Facts

Model / SKUEVT290A-CS10
Product TypeDouble-Ended Male Conical Coupler Spacer
Spacer Length10 mm / 0.39 in
Outer Diameter50 mm / 1.96 in
MaterialAluminum Alloy EN AW-6061 T6
Component Weight0.4 lb
10 mmLength Added
50 mmOuter Diameter
Male / MaleCoupler Ends
0.4 lbComponent Weight
Not IncludedPins and R-Clips

What It Changes

It Adds 10 mm to a Connection. It Does Not Create a New Load Point.

The CS10 adds 10 mm / 0.39 in at a selected compatible joint. It does not independently establish an allowable span, load capacity, pick-point location, or support arrangement for the modified truss structure.

Changes
Adds 10 mm / 0.39 in to the selected compatible connection length.
Does Not Change
Does not establish a load rating or support configuration for the modified structure.
Does Not Include
Does not include coupler-pins, r-clips, or other retaining hardware.
Connection Component
Modifies one connection; it is not a truss section or independent support point.

What the Spacer Supports

Adjust Verified 10 mm Differences Without Modifying a Truss Section.

Use the EVT290A-CS10 where a verified compatible truss connection requires a 10 mm adjustment. Confirm the receiver interface, selected coupler, required pins and r-clips, component engagement, complete layout, support conditions, and applicable engineering requirements before modifying any truss connection.

Custom Measurement Adjustments
Address a verified 10 mm measurement difference in a compatible truss system without cutting a truss section.
Fine Layout Adjustments
Fine-tune a planned overall measurement where standard truss sections do not meet the approved dimension.
Retrofit and Rework
Adjust a compatible existing structure where a documented project requirement calls for a 10 mm correction.
EVT290S and F34 Systems
Use with verified compatible 290 mm conical truss systems and matching retention hardware.

Included Components

One Spacer. Retaining Hardware Sold Separately.

The EVT290A-CS10 ships as one double-ended male conical spacer. It does not include coupler-pins, r-clips, or other retaining hardware. Select and verify all required hardware for the complete approved connection before installation.

1 Male-to-Male Spacer
One double-ended male conical spacer inserts between compatible truss receivers.
10 mm Length Added
Adds 10 mm / 0.39 in at the selected compatible connection point.
6061-T6 Aluminum
Manufactured from Aluminum Alloy EN AW-6061 T6 with a brushed aluminum finish.
No Retaining Hardware
Coupler-pins and r-clips are not included and must be selected for the complete verified connection.
Do not stack spacers without specific approval.

Use the selected spacer only for the approved measurement adjustment. Do not stack multiple spacers at one connection point without project-specific engineering approval for the completed connection.

Technical Reference

EVT290A-CS10 Specifications.

The following values identify the spacer dimensions, material, weight, included-component scope, and listed system fit. Confirm current manufacturer drawings, instructions, required retaining hardware, component condition, and project requirements before ordering, assembling, lifting, or loading a modified truss structure.

Identification

Product Information

Model / SKUEVT290A-CS10
Product TypeDouble-Ended Male Conical Coupler Spacer
Component Weight0.4 lb

Dimensions

Size

Spacer Length10 mm / 0.39 in
Outer Diameter50 mm / 1.96 in
Overall Height90 mm

Construction

Material and Finish

MaterialEN AW-6061 T6 Aluminum
FinishBrushed Aluminum
Included HardwareNone, Pins and R-Clips Not Included

System Fit

Compatibility

Primary SystemsEVT290I, EVT290T, EVT290S
Listed CompatibilityF34 and EVT50ST, When Interfaces Match

System Compatibility

Use CS10 in Compatible 290 mm Conical Truss Connections.

The EVT290A-CS10 is a double-ended male conical spacer for compatible 290 mm conical truss connection points. Compatibility requires matching receiver spacing, conical coupler dimensions, chord interfaces, coupler-pin length, r-clip fit, component engagement, and engineering data for the completed modified structure.

EVT290S Compatibility
Use with compatible EVT290S sections, corners, bases, and accessories when the complete connection is verified.
F34 Compatibility
Use with F34-format 290 mm square components only when receivers, couplers, pins, and retention hardware match.
Connection Engagement
Verify the selected coupler fully engages both receivers and all required retaining hardware remains suitable for the completed joint.
Mixed-System Verification
Confirm the entire completed connection through a physical ground test-fit before lifting the structure.
Mechanical fit does not establish structural suitability.

A spacer can physically fit within a connection without the complete modified structure having approved support or load conditions. Verify all component interfaces, manufacturer documentation, required hardware, and project-specific engineering before use.

Installation Overview

Verify the Joint Before It Is Loaded or Lifted.

Install the CS10 only in a verified compatible truss connection using serviceable components, the correct coupler-pins and r-clips, current manufacturer instructions, and the approved project plan. Do not force a spacer or connection into alignment.

01 — Confirm the Requirement
Confirm that the approved truss system calls for a 10 mm adjustment at the specific selected joint.
02 — Inspect Components
Inspect the spacer, receivers, couplers, coupler-pins, r-clips, and adjoining truss for damage, wear, or deformation.
03 — Test-Fit the Joint
Confirm required engagement between the spacer, receivers, coupler, pins, and retaining hardware before completing installation.
04 — Secure Hardware
Install all required coupler-pins and r-clips fully and correctly before handling, lifting, or loading the structure.

Safety and Engineering

A Spacer Changes the Connection. It Does Not Remove Engineering Responsibility.

The EVT290A-CS10 does not independently establish a load rating for the modified structure. The spacer changes the selected connection geometry, so the completed configuration requires review for the actual truss layout, support conditions, joint engagement, installed loads, handling method, and engineering requirements. Do not support loads directly from the spacer connection point unless the exact approved load case specifically permits it.

Do not exceed the capacity of the spacer, installed connection hardware, or completed truss system.
Do not support loads directly from the spacer connection unless the exact approved load case permits it.
Verify complete coupler engagement in both receivers after the spacer is installed.
Use coupler-pins and r-clips selected for the complete verified connection.
Do not stack spacers at one connection point without project-specific engineering approval.
Use qualified rigging or engineering review for overhead, public-facing, outdoor, load-bearing, or regulated modified structures.

Product Questions

EVT290A-CS10 Questions.

What does the EVT290A-CS10 do?

It adds 10 mm / 0.39 in at one compatible truss connection point to address a verified measurement difference without modifying a truss section.

Does it include coupler-pins or r-clips?

No. The spacer does not include coupler-pins, r-clips, or other retaining hardware. Select all required hardware for the completed verified connection.

Can loads be supported directly from the spacer connection?

Do not support loads directly from the spacer connection unless the exact approved load case specifically permits it.

Can multiple spacers be stacked to close a larger gap?

Do not stack multiple spacers at one connection point without project-specific engineering approval for the completed connection.

Need to Adjust a Verified 10 mm Truss Measurement?

Contact us for compatibility checks, retaining-hardware guidance, measurement review, quantities, CAD resources, and engineering coordination.

Contact UsRequest a Quote
