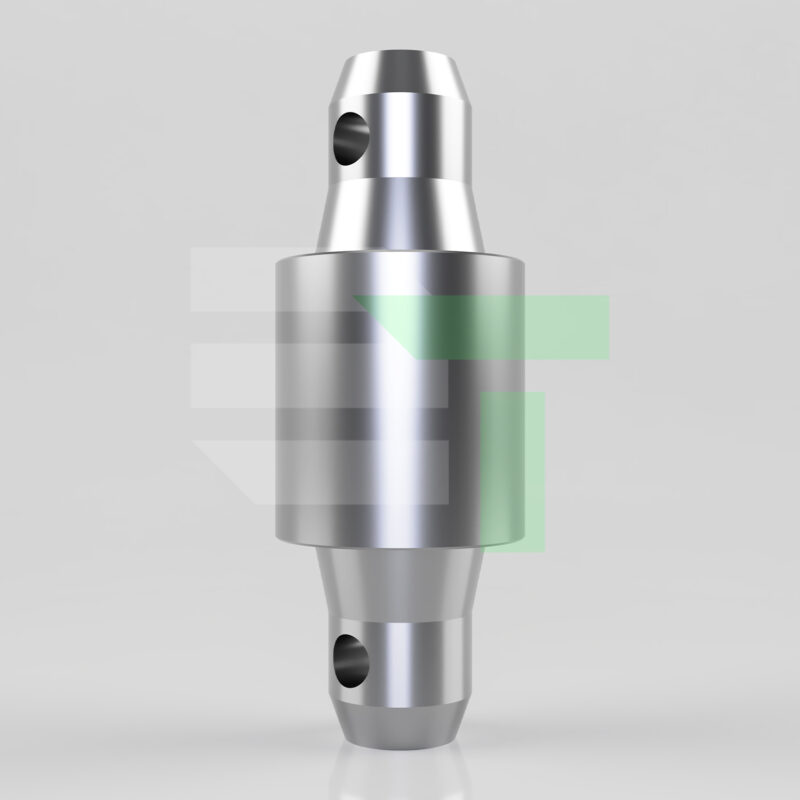

EVT290A-CS55 | 55mm Coupler Spacer for 290mm Truss

Dimensions & Specs
Spacer Length: 2.16 in (55 mm)
Outer Diameter: 1.96 in (50 mm) (Matches standard truss tubing)
Function: Expands truss length for custom measurements and adjustments

Construction
Material Type: Aluminum Alloy EN AW-6061 T6
Type: Double-Ended Male Conical Coupler
Compatibility: Fits standard 290mm Truss Conical Connection points

Finish & Features
Surface: Aluminum Brush Finish
Included: 55mm Spacer Coupler Only
Note: Coupler Pins and Cotter Pins are NOT included
Weight: 0.93 lb (0.42 kg)

In stock

SKU: EVT290A-CS55 Categories: , , ,

EVT290S Truss Systems Knowledge Center

EVT290A-CS55 55 mm Male Truss Coupler Spacer.
Adds 55 mm at One Compatible 290 mm Conical Truss Connection.

The EVT290A-CS55 is a double-ended male conical aluminum spacer that adds a fixed 55 mm / 2.16 in at one compatible 290 mm truss connection. Before installation, confirm the connection requires 55 mm and that the complete joint—including truss receivers, conical coupler, coupler-pin length, r-clip fit, and retaining hardware—remains suitable with the spacer installed. It is not a truss section, independent support point, or direct load-attachment location.

Product Facts

Model / SKUEVT290A-CS55
Product TypeDouble-Ended Male Conical Coupler Spacer
Added Length55 mm / 2.16 in
Outer Diameter50 mm / 1.96 in
MaterialAluminum Alloy EN AW-6061 T6
Component Weight0.93 lb / 0.42 kg
55 mmLength Added
50 mmOuter Diameter
135 mmOverall Height
0.93 lbComponent Weight
Not IncludedPins and R-Clips

What It Is

A Fixed 55 mm Coupler Spacer for One Specific Connection Condition.

The EVT290A-CS55 is a single-piece, double-ended male conical spacer with an integrated 55 mm collar. It is manufactured from Aluminum Alloy EN AW-6061 T6 with a brushed aluminum finish. Its fixed 55 mm geometry must match the approved requirement at the selected compatible connection.

Fixed 55 mm Collar
Adds 55 mm / 2.16 in; it does not provide adjustable travel.
Male-to-Male Form
Provides double-ended male conical interfaces for compatible truss receivers.
Brushed Aluminum
Manufactured from Aluminum Alloy EN AW-6061 T6 with a brushed finish.
Connection Component
It is not a truss section, support point, or direct load-attachment location.

What It Changes

It Adds 55 mm to One Joint. It Does Not Create a New Load Point.

The CS55 adds 55 mm / 2.16 in at the selected compatible connection. It does not independently establish a load rating, allowable span, pick-point location, or support arrangement for the modified truss structure.

Changes
Adds 55 mm / 2.16 in to the selected compatible connection length.
Does Not Change
Does not establish an allowable span or load rating for the modified structure.
Does Not Include
Does not include coupler-pins, r-clips, or other retaining hardware.
Does Not Permit
Does not permit direct load attachment or support from the spacer joint.

What the Spacer Supports

Close a Larger Measured Difference at a Single Connection.

Use the EVT290A-CS55 where a verified compatible truss connection requires a 55 mm adjustment. Confirm the receiver interface, selected coupler, required pins and r-clips, complete layout, support conditions, and applicable engineering requirements before modifying a connection.

Custom Measurement Adjustments
Address a verified 55 mm measurement difference without modifying a truss section.
Architectural Alignment
Match reviewed display, exhibit, and architectural interfaces with measured conditions.
Technical Frame Adjustments
Adjust controlled dimensions around planned camera, sensor, lighting, and display interfaces.
EVT290S and F34 Systems
Use with verified compatible 290 mm conical truss systems and matching retention hardware.

Selection Guidance

Select the CS55 When the Truss System Requires a 55 mm Addition.

Use the EVT290A-CS55 only when the connection requires a fixed 55 mm / 2.16 in addition at one compatible joint. Do not use it as an adjustable fitting, generic extension, repair for damaged truss, or substitute for a different measured requirement.

Measured 55 mm Difference
For a 55 mm addition at one specific verified connection.
Custom Measurement Alignment
For reviewed display, exhibit, architectural, lighting, or technical setups where 55 mm is required.
Receiver and Coupler Check
For connections where complete receiver and coupler engagement remains possible.
No Unapproved Stacking
Do not stack spacers or substitute combinations without approval for the completed structure.

Included Components

One Spacer. Retaining Hardware Sold Separately.

The EVT290A-CS55 ships as one double-ended male conical spacer. It does not include coupler-pins, r-clips, or other retaining hardware. Select and verify all required hardware for the completed approved connection before installation.

1 Male-to-Male Spacer
One double-ended male conical spacer inserts between compatible truss receivers.
55 mm Length Added
Adds 55 mm / 2.16 in at the selected compatible connection point.
6061-T6 Aluminum
Manufactured from Aluminum Alloy EN AW-6061 T6 with a brushed finish.
No Retaining Hardware
Coupler-pins and r-clips are not included and must be selected for the verified connection.
Do not stack spacers without specific approval.

Use the selected spacer only for the approved measurement adjustment. Do not stack multiple spacers at one connection point without project-specific engineering approval for the completed connection.

Technical Reference

EVT290A-CS55 Specifications.

The following values identify the spacer dimensions, material, weight, included-component scope, and listed system fit. Confirm current manufacturer drawings, instructions, retaining hardware, component condition, and project requirements before ordering, assembling, lifting, or loading a modified truss structure.

Identification

Product Information

Model / SKUEVT290A-CS55
BrandEvolve Truss
Product TypeDouble-Ended Male Conical Coupler Spacer
Component Weight0.93 lb / 0.42 kg

Dimensions

Size

Spacer Length55 mm / 2.16 in
Outer Diameter50 mm / 1.96 in
Documented Dimensions50 x 135 x 50 mm

Construction

Material and Finish

MaterialEN AW-6061 T6 Aluminum
FinishBrushed Aluminum
Included HardwareNone, Pins and R-Clips Not Included

System Fit

Compatibility

Primary SystemsEVT290I, EVT290T, EVT290S
Listed CompatibilityF34 and EVT50ST, When Interfaces Match

System Compatibility

Use CS55 in Compatible 290 mm Conical Truss Connections.

The EVT290A-CS55 is designed for compatible 290 mm conical truss connection points, including EVT290S and F34-style systems. Confirm receiver spacing, coupler dimensions, chord interfaces, pin length, r-clip fit, complete engagement, and engineering data before combining separately sourced components or lifting the completed structure.

EVT290S Compatibility
Use with compatible EVT290S square truss sections, corners, bases, and accessories when the complete connection is verified.
F34 Compatibility
Use with matching F34 290 mm square components and conical hardware when the complete interface matches.
Full Coupler Engagement
Confirm the selected conical coupler is long enough to fully engage both receivers after the 55 mm spacer is installed.
Mixed-System Verification
Test-fit mixed-brand or separately sourced components on the ground before lifting the completed structure.
Mechanical fit does not establish structural suitability.

A spacer can physically fit within a connection without the completed modified structure having approved support or load conditions. Verify all interfaces, documentation, hardware, and project-specific engineering before use.

Installation Overview

Confirm the 55 mm Requirement. Then Confirm the Entire Connection.

The spacer changes the effective length and connection depth at one joint. Install it only after confirming the 55 mm addition, inspecting the components, test-fitting the connection, and confirming coupler engagement, pins, r-clips, and the complete structural plan.

01 — Confirm Requirement
Confirm the approved system requires a fixed 55 mm / 2.16 in addition at the selected connection.
02 — Inspect Components
Inspect the spacer, receivers, couplers, pins, r-clips, and adjoining truss for damage or deformation.
03 — Test-Fit Before Lifting
Confirm the spacer, receivers, coupler, pins, and r-clips achieve required engagement.
04 — Confirm Coupler Engagement
Confirm the selected conical coupler fully engages both truss receivers after the CS55 is added.
05 — Install Retaining Hardware
Supply and install required coupler-pins and r-clips; they are not included with the spacer.

Safety and Engineering

The Spacer Changes One Connection. It Does Not Override System Limits.

The EVT290A-CS55 does not independently establish a load rating for the modified structure. Evaluate the completed layout for support conditions, joint engagement, installed loads, handling method, and engineering requirements. Do not support loads directly from the spacer connection unless the exact approved load case specifically permits it.

Do not exceed the capacity of the spacer, installed connection hardware, or completed truss system.
Do not support loads directly from the spacer connection unless the exact approved load case permits it.
Verify complete coupler engagement in both receivers after the spacer is installed.
Use pins and r-clips selected for the complete verified 55 mm connection.
Do not stack spacers at one connection point without project-specific engineering approval.
Use qualified rigging or engineering review for overhead, public-facing, outdoor, load-bearing, or regulated modified structures.

Variant Relationship

Start With the Gap You Measured. Then Choose the Matching Spacer.

Spacer length and finish must match the approved connection requirement. Do not stack, substitute, or combine variants unless the exact arrangement is approved for the complete structure.

CS10 / CS10 Black
10 mm / 0.39 in, brushed aluminum or matte black.
CS20 / CS20 Black
20 mm / 0.79 in, brushed aluminum or matte black.
CS30 / CS30 Black
30 mm / 1.18 in, brushed aluminum or matte black.
CS40
40 mm / 1.57 in, brushed aluminum.
CS50
50 mm / 1.97 in, brushed aluminum.
CS55
55 mm / 2.16 in, brushed aluminum.
Do not combine smaller spacers to reach 55 mm.

A 55 mm requirement calls for this single-piece spacer, not a combination of smaller units. Do not stack spacers or combine dimensions without engineering approval for the completed connection.

Product Questions

EVT290A-CS55 Questions.

What does the CS55 do?

It adds a fixed 55 mm / 2.16 in at one compatible 290 mm conical truss connection.

Are coupler-pins included?

No. The product includes the 55 mm spacer only. Coupler-pins and r-clips must be selected separately for the completed verified connection.

Can it be used as a load point?

Do not attach or support loads directly from the spacer connection unless the exact approved load case specifically permits it.

Can this spacer be combined with other spacers?

Do not stack or combine spacers unless the exact configuration has project-specific engineering approval for the completed structure.

Need to Close a 55 mm Truss Measurement Difference?

Contact us for compatibility checks, retaining-hardware guidance, measurement review, quantities, CAD resources, and engineering coordination.
