EVT290A-REP | Aluminum Round End Cap (Dome Finish)

Dimensions & Specs
Design: Smooth semi-spherical dome shape
Function: Aesthetic termination for truss ends; prevents snagging
Safety: Non-structural (Not for lifting or rigging)

Construction
Material Type: Aluminum Alloy EN AW-6061 T6
Type: Male Conical Connector Stem
Compatibility: Fits all standard 290mm Truss systems

Finish & Features
Surface: Aluminum Brush Finish
Included: Single End Cap, Coupler Pin, and Cotter Pin
Weight: 0.33 lb (0.15 kg)

In stock

SKU: EVT290A-REP Categories: , , ,

EVT290S Truss Systems Knowledge Center

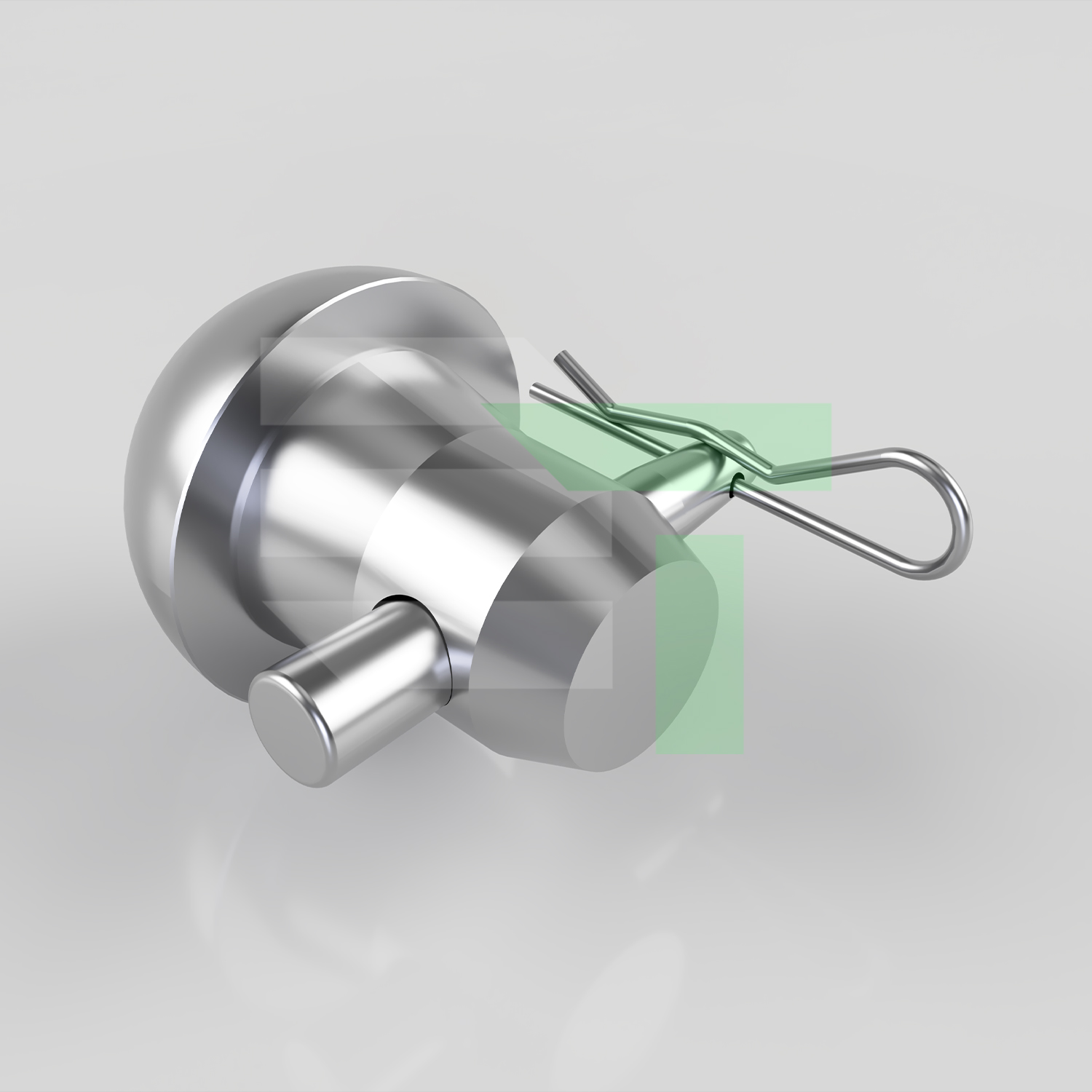

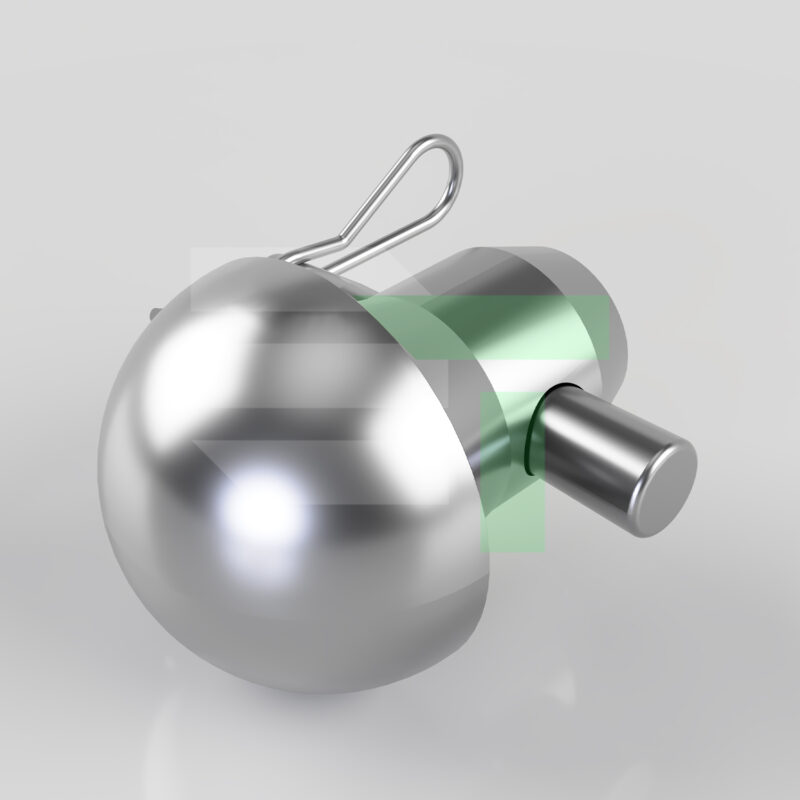

EVT290A-REP Aluminum Dome Truss End Cap.
For Finishing Compatible 290 mm Truss Chord Receivers.

The EVT290A-REP is a decorative aluminum dome end cap that finishes an exposed compatible 290 mm truss chord receiver. Its rounded dome and integrated male conical stem replace an open receiver with a smooth termination. It is non-structural: do not use it to lift, support, suspend, anchor, or attach any load.

Product Facts

Model / SKUEVT290A-REP
Product TypeDecorative Dome End Cap
Connection TypeIntegrated Male Conical Stem
MaterialAluminum Alloy EN AW-6061 T6
FinishBrushed Aluminum
Component Weight0.33 lb / 0.15 kg
1End Cap Included
1Coupler-Pin Included
1R-Clip Included
Non-StructuralUse Classification
0.33 lbComponent Weight

Product Overview

Finish an Exposed Receiver with a Smooth Aluminum Dome.

The REP provides a rounded end treatment for visible compatible truss chord receivers. Its removable male conical stem installs without drilling, welding, or permanently altering the truss. It covers the open receiver and can be removed whenever the receiver is needed for another compatible component.

Semi-Spherical Dome
Creates a smooth termination at an exposed truss receiver.
Male Conical Stem
Inserts into a compatible receiver and secures with the included pin and r-clip.
Removable Installation
Remove the cap when the receiver is needed for another compatible component.
Decorative Only
Not a lifting, suspension, anchoring, rigging, or load-bearing attachment point.

Application Uses

Give Exposed Truss Ends a Finished Appearance.

Use dome end caps where compatible truss chord receivers remain exposed. Count each exposed chord receiver before ordering; a square truss end can require up to four caps.

Vertical Truss Totems
Finish visible receivers on display towers and vertical truss structures.
Trade Show Structures
Provide a smooth end treatment for exposed truss chords in booth structures.
Retail Displays
Finish exposed receiver ends on showroom and retail truss displays.
Architectural Truss
Complete the visible end treatment of compatible truss structures.

Included Components

One Complete End-Cap Connection Set.

Each unit includes 1 dome end cap, 1 coupler-pin, and 1 r-clip. The cap is sold individually; order the quantity needed to finish each exposed compatible chord receiver.

1 Dome End Cap
Brushed aluminum dome with integrated male conical stem.
1 Coupler-Pin
Secures the conical stem within the compatible receiver.
1 R-Clip
Retains the installed coupler-pin.
Sold Individually
A square truss section can require up to four caps to finish one exposed end.

Technical Reference

EVT290A-REP Specifications.

Identification

Product Details

Model / SKUEVT290A-REP
Product TypeDecorative Round Truss End Cap
Weight0.33 lb / 0.15 kg

Construction

Dome and Stem

Dome ShapeSmooth Semi-Spherical
Connector TypeIntegrated Male Conical Stem
Cap MaterialAluminum Alloy EN AW-6061 T6
FinishBrushed Aluminum

Included Hardware

One Complete Set

End Caps1
Coupler-Pins1
R-Clips1

Use Classification

Limitations

Primary UseCosmetic Receiver Termination
Load ClassificationNon-Structural

System Compatibility

Compatible EVT290S and 290 mm Square Truss Receivers.

The REP is designed for compatible EVT290S and 290 mm square truss receivers with matching conical connector details. Confirm connector diameter and taper, receiver depth, pin diameter, pin-hole alignment, and chord clearance before combining components.

Installation

Seat the Dome, Install the Pin, and Secure the R-Clip.

01 — Inspect Components
Inspect the cap, stem, included pin, included r-clip, and compatible receiver.
02 — Clean Receiver
Remove loose dirt and debris from the receiver.
03 — Insert Stem
Insert the male conical stem completely into the compatible receiver.
04 — Secure Hardware
Align holes, install the included pin completely, and secure it with the included r-clip.

Safety and Use Limits

A Decorative End Cap Is Not a Load Attachment Point.

The REP is a decorative, non-structural accessory. It must not be used to lift, support, suspend, anchor, tie off, rig, or attach any load.

Do not attach fixtures, signs, speakers, cables, safety devices, or other loads to the end cap.
Do not use the cap as a lifting handle or tie-off point.
Do not drill, weld, grind, bend, or otherwise modify the cap or connector stem.
Do not install if its stem, pin hole, pin, or r-clip is damaged or excessively worn.

Product Questions

EVT290A-REP Questions.

Is the REP load bearing?

No. It is decorative only and must not be used to lift, support, suspend, anchor, or attach any load.

What hardware is included?

Each unit includes 1 end cap, 1 coupler-pin, and 1 r-clip.

Can the cap be removed later?

Yes. It is secured with the removable included pin and r-clip.
