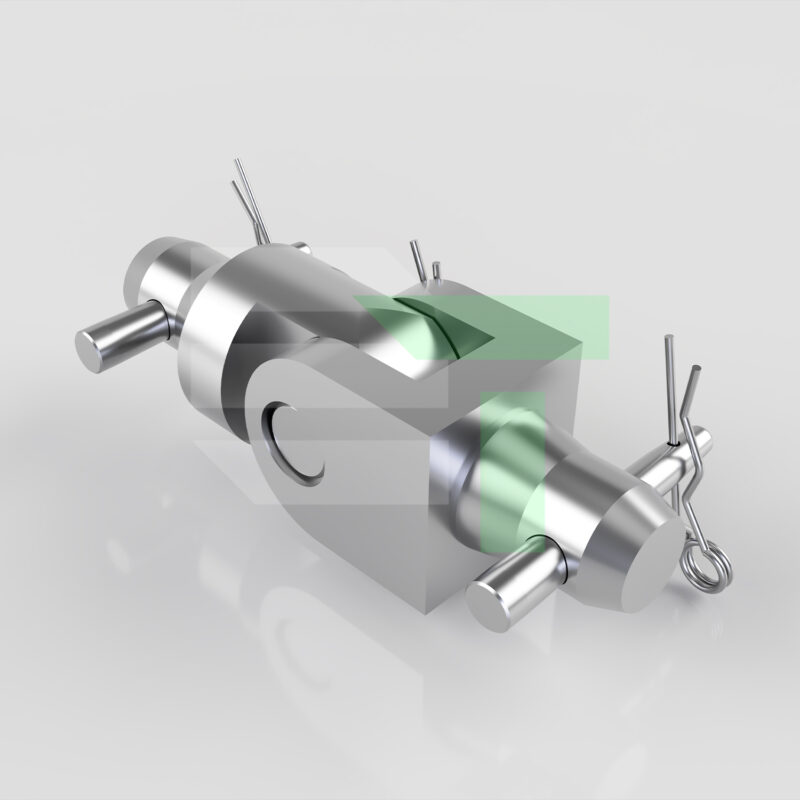

Name: EVT290A‑TMH — Variable Angle Low Profile Hinge for 290 mm Square Truss Systems
Brand: Evolve Truss
SKU: EVT290A-TMH
Price: 50.00 USD
Availability: InStock

EVT290S Truss Systems Knowledge Center

EVT290A-TMH Variable-Angle Truss Hinge.
For Adjustable 290 mm Truss Connections from 0 through 180 Degrees.

The EVT290A-TMH is a free-moving, non-lockable variable-angle hinge for compatible 290 mm square conical truss systems. It allows angular connections from 0 through 180 degrees for arches, closed polygon structures, and custom display frames. A closed structure, external bracing, guying, or another approved restraint method must maintain the final angle.

Product Facts

Model / SKUEVT290A-TMH

Product TypeVariable-Angle Truss Hinge

Angle Range0 through 180 Degrees

MechanismFree-Moving, Non-Lockable

MaterialAluminum Alloy EN AW-6061 T6

Component Weight1.82 lb / 0.83 kg

0–180Degree Range

Non-LockableHinge Mechanism

2Coupler-Pins Included

2R-Clips Included

1.82 lbComponent Weight

Product Overview

A Free-Moving Hinge for Adjustable Truss Angles.

The TMH replaces a rigid connection where a truss structure needs an adjustable angle. Its range supports flat, folded, and intermediate configurations, but it is not a locking corner. The final angle must be controlled by the completed structure or approved external restraint.

Full Angle Range

Allows movement from 0 through 180 degrees.

Non-Lockable Mechanism

Does not lock into a fixed position and must not be relied on alone to hold an angle.

Low-Profile Body

Keeps the connection gap between truss sections smaller than a larger hinge assembly.

Two Truss Connections

Connects to truss on both sides through compatible conical hardware.

Application Uses

Create Controlled Angles in Closed or Properly Restrained Structures.

The TMH is intended for compatible structures where the completed assembly maintains the selected angle through its own form, bracing, guying, or another approved restraint.

Truss Arches

Form adjustable arch connections where the completed structure maintains the selected angle.

Closed Polygon Structures

Use in closed structures where connected sections collectively maintain the final shape.

Display Frames

Create non-right-angle display frames with approved support and restraint.

Braced Connections

Use where external bracing or guying controls the selected angle.

Mechanism Limits

The Hinge Allows an Angle. It Does Not Hold the Angle by Itself.

The TMH is free-moving and non-lockable. It may find its final angle within a closed or properly braced structure, but the hinge alone cannot establish or retain that angle. Do not use it as a rigid corner, fixed angle block, or substitute for restraint.

Included Components

One Variable Hinge and Two Complete Coupler-Pin Sets.

Each unit includes 1 variable-angle hinge, 2 coupler-pins, and 2 r-clips. One set secures each truss-side connection.

1 Variable-Angle Hinge

Free-moving, non-lockable hinge body.

2 Coupler-Pins

Secure the two compatible truss-side connections.

2 R-Clips

Retain the two included coupler-pins.

Technical Reference

EVT290A-TMH Specifications.

Identification

Product Details

Model / SKUEVT290A-TMH

Product TypeVariable-Angle Truss Hinge

Weight1.82 lb / 0.83 kg

Mechanism

Angle Movement

Angle Range0 through 180 Degrees

MechanismFree-Moving, Non-Lockable

Body ProfileLow Profile

Construction

Material and Hardware

MaterialAluminum Alloy EN AW-6061 T6

FinishBrushed Aluminum

Included HardwareHinge, 2 Coupler-Pins, 2 R-Clips

System Fit

Compatibility

Primary SystemsEVT290I, EVT290T, EVT290S

Listed CompatibilityF34-Format and Verified 290 mm Interfaces

System Compatibility

Compatibility Requires More Than a Nominal 290 mm Match.

Physical fit alone does not establish equivalent capacity, an approved angle, or a safe completed structure. Confirm receiver details, conical connector dimensions, pin alignment, r-clip fit, required restraint, and engineering data before combining systems.

Assembly

Connect Both Sides, Then Confirm How the Final Angle Is Restrained.

01 — Inspect Hinge

Do not use if it shows wear, deformation, damage, or excessive play.

02 — Install Connections

Install compatible conical components, both included pins, and both included r-clips correctly and fully.

03 — Confirm Restraint

Confirm the closed structure, bracing, guying, or approved method maintains the intended angle.

04 — Check Before Loading

Confirm all connections, restraint, and the complete structure before lifting or loading.

Safety and Engineering

A Free-Moving Hinge Cannot Hold an Angle Alone.

The TMH does not lock into a fixed position. Do not rely on the hinge alone to hold an angle. The completed structure must maintain its shape through connected sections, bracing, guying, or another approved restraint method.

Do not rely on the hinge alone to hold an angle.

Confirm the completed structure maintains its intended shape through approved restraint.

Ensure both included pins and r-clips are fully engaged before lifting or loading.

Use qualified rigging or engineering review for public-facing, elevated, outdoor, or load-bearing structures.

Product Questions

EVT290A-TMH Questions.

Does the TMH lock at a selected angle?

No. It is free-moving and non-lockable. The completed structure or approved restraint must maintain the final angle.

What angle range does it allow?

The hinge allows movement from 0 through 180 degrees.

What hardware is included?

Each unit includes 1 hinge, 2 coupler-pins, and 2 r-clips.

Can it replace a rigid corner?

Not where a rigid fixed-angle connection is required. The TMH is non-lockable and needs completed-structure restraint.
