EVT50A-S082

Original price was: $27.00.Current price is: $18.00.

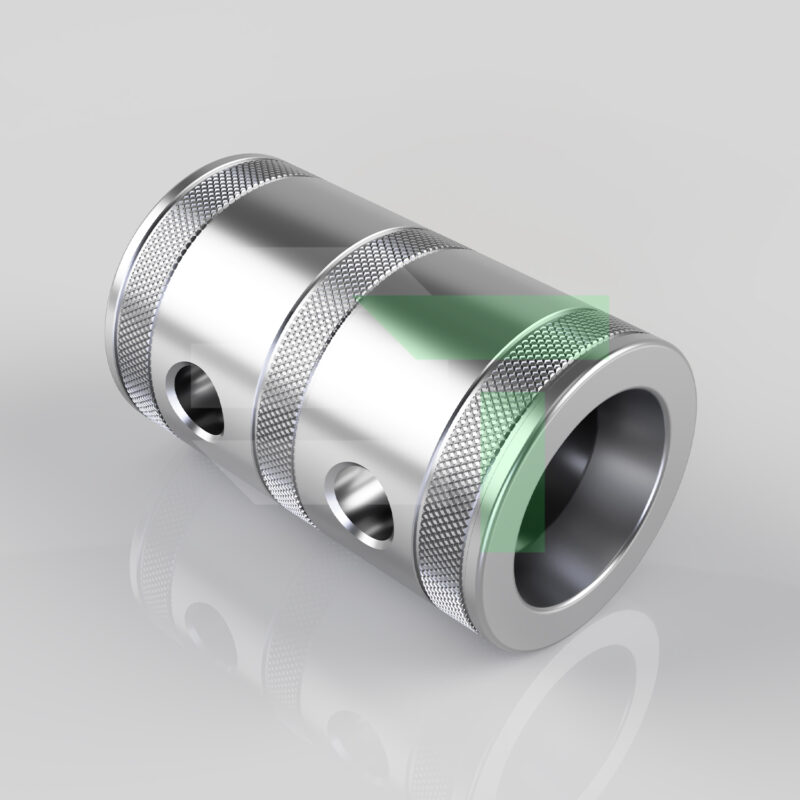

EVT50A-S082 | Female Truss Spacer 82mm / 3.2 in

Dimensions & Specs
Outer Length: 3.2 in (82 mm)
Tubing Dimensions: 1.96 in (50 mm) OD / 0.08 in (2 mm) Wall Thickness
Function: Allows expansion and adjustment to custom measurements
Type: Female Spacer

Construction
Material Type: Aluminum Alloy EN AW-6061 T6
Compatibility: Compatible with 50mm (2-inch) truss tubing

Finish & Features
Surface: Aluminum Brush Finish
Weight: 0.55 lb (0.25 kg)

In stock

SKU: EVT50A-S082 Categories: , , ,

EVT290S Conical Truss System Knowledge Center

EVT50A-S082 82 mm / 3.2 in Female Truss Spacer.
A Female-to-Female Spacer for 50 mm Tubing and Modular 290 mm Conical Truss Builds.

The EVT50A-S082 is an 82 mm / 3.2 in female-to-female aluminum truss spacer for compatible 50 mm / 2 in tubing and 290 mm conical truss systems. Its receiver holes on both ends create a fixed spacing bridge between adjoining compatible female truss ends. The spacer changes connection geometry at one joint; it is not a truss section, independent support point, or direct load-attachment location. Connecting hardware is not included; verify fit, full coupler seating, pin engagement, retention, and the complete engineered structure before lifting or applying load.

Product Facts

Model / SKUEVT50A-S082
Product ClassFemale Truss Spacer
Fixed Spacing82 mm / 3.2 in
Connection FormFemale-to-Female Conical Receivers
Tube Interface50 mm / 2 in Tubing
FinishBrushed Aluminum
82 mmFixed Spacing
3.2 inFixed Spacing
Female-to-FemaleConical Receiver Form
50 mmTube Interface
Brushed AluminumFinish

Product Overview

An 82 mm Female Spacer for One Compatible 50 mm Tube and 290 mm Conical Truss Connection.

The EVT50A-S082 is a female-to-female spacer with receiver holes at both ends. It creates a fixed 82 mm / 3.2 in spacing bridge in a compatible 50 mm tubing and 290 mm conical truss assembly. The female receiver configuration interfaces with compatible conical connection hardware.

Fixed 82 mm Spacing
Adds a fixed bridge at one selected connection. It does not provide adjustable travel or telescoping length.
Female-to-Female Receivers
Receiver holes on both ends interface with compatible conical hardware and adjoining female truss receivers.
Brushed Aluminum Finish
Designed to visually integrate with standard aluminum truss components.
Connection-Level Component
Changes one joint; it is not a truss section, support point, or direct load-attachment location.

What It Changes

It Adds 82 mm at One Joint. It Does Not Establish a New Structural Rating.

When installed in a compatible conical connection, the spacer creates a fixed 82 mm / 3.2 in bridge between adjoining truss ends. It does not independently establish allowable span, load capacity, pick-point location, support arrangement, or approval for the modified structure. Evaluate the complete system after connection geometry changes.

Changes
Adds a fixed bridge between adjoining compatible female truss ends.
Does Not Change
Does not independently establish a load rating, span, pick-point location, or support plan.
Hardware
Connecting hardware is not included. One compatible conical coupler, two coupler-pins, and two r-clips are required per completed connection.
Does Not Permit
Does not permit direct attachment or support of loads from the spacer connection point.

Selection Guidance

Select the S082 When The Layout Requires an 82 mm Female-to-Female Bridge.

Use the S082 when a documented layout requires a fixed 82 mm / 3.2 in spacing bridge between compatible female truss ends. Do not use it as an adjustable fitting, generic extension, repair for damaged truss, or substitute for a different measured correction.

Measured 82 mm Difference
Use when an approved layout identifies a fixed correction at one compatible connection.
Female Receiver Requirement
Use where the system requires a receiver-to-receiver spacer configuration.
Custom Layout Alignment
Suitable for a reviewed scenic, exhibit, architectural, lighting, or technical layout.
Not an Adjustable Coupler
Do not force alignment, create an unmeasured correction, or replace an engineered solution.

Technical Reference

EVT50A-S082 Product Specifications.

Identification

Product Details

Model / SKUEVT50A-S082
BrandEvolve Truss
Product TypeFemale Truss Spacer
Connection FormFemale-to-Female Conical Receivers

Dimensions

Spacing Reference

Fixed Spacing82 mm / 3.2 in
Tube Interface50 mm / 2 in Tubing
Overall DimensionsNot Listed in Supplied Product Data
Product WeightNot Listed in Supplied Product Data

Construction

Material and Finish

MaterialEN AW-6061 T6 Aluminum Alloy
FinishBrushed Aluminum
Functional Output82 mm Female-to-Female Spacing Bridge

Hardware

Required per Connection

Included HardwareNone
Conical Coupler1 Compatible Coupler Required
Coupler Pins2 Required
R-Clips2 Required

System Compatibility

F34, EVT290S, and Compatible 290 mm Conical Truss Systems.

The S082 is designed for compatible 50 mm / 2 in tubing and 290 mm conical-connector systems, including F34 and EVT290S. Before mixing brands or separately sourced components, verify receiver spacing, conical-coupler dimensions, chord geometry, pin alignment, full seating, and the complete structural plan.

Installation Checks

Confirm the 82 mm Requirement. Then Verify the Complete Connection.

01 — Confirm Correction
Confirm that the approved layout requires a fixed 82 mm / 3.2 in bridge.
02 — Inspect Receivers
Inspect the spacer and adjoining receiver for damage, deformation, wear, or elongation.
03 — Confirm Hardware
Select compatible coupler, pins, and retention hardware for the complete connection.
04 — Test-Fit Before Lifting
Confirm the connection seats fully without forcing.
05 — Install Retainers
Install all pins and retention hardware required by the approved configuration.
06 — Inspect Structure
Verify the completed connection and surrounding structure before loading or lifting.

Safety and Engineering

The Spacer Changes Connection Geometry. It Does Not Override System Limits.

The S082 is a structural connection component. It does not independently establish a load rating for the modified structure. Do not exceed the capacity of the spacer or the truss system it modifies. Do not support loads directly from the spacer connection point. Review the complete structure for the actual installation.

Do not attach or support loads directly from the spacer connection point.
Do not use the spacer to force a misaligned connection or compensate for damaged truss.
Verify full seating in both receivers and install all required pins and retainers.
Do not stack or combine spacers unless the exact complete structure is approved.
Test-fit mixed-brand components on the ground before lifting.

Product Questions

Frequently Asked Questions.

What does the S082 do?

It creates a fixed 82 mm / 3.2 in female-to-female spacing bridge in a compatible conical truss connection.

Is connecting hardware included?

No. Select the compatible coupler, two pins, and two r-clips required for the completed connection.

Can it be used as a load point?

No. Do not attach or support loads directly from the spacer connection point.

Are overall dimensions and weight listed?

The supplied data confirms fixed spacing and tube interface, but does not list overall dimensions or product weight. Confirm current manufacturer documentation if needed.

Need to Create an 82 mm Bridge in a 50 mm Tube or 290 mm Conical Truss Layout?

Contact us for product identification, connection-hardware planning, layout review, spacer quantities, technical drawings, and engineering coordination.
