10x10 Trade Show Booth Kit — Triangle Aluminum Truss Display (EVT290T-Arcata)

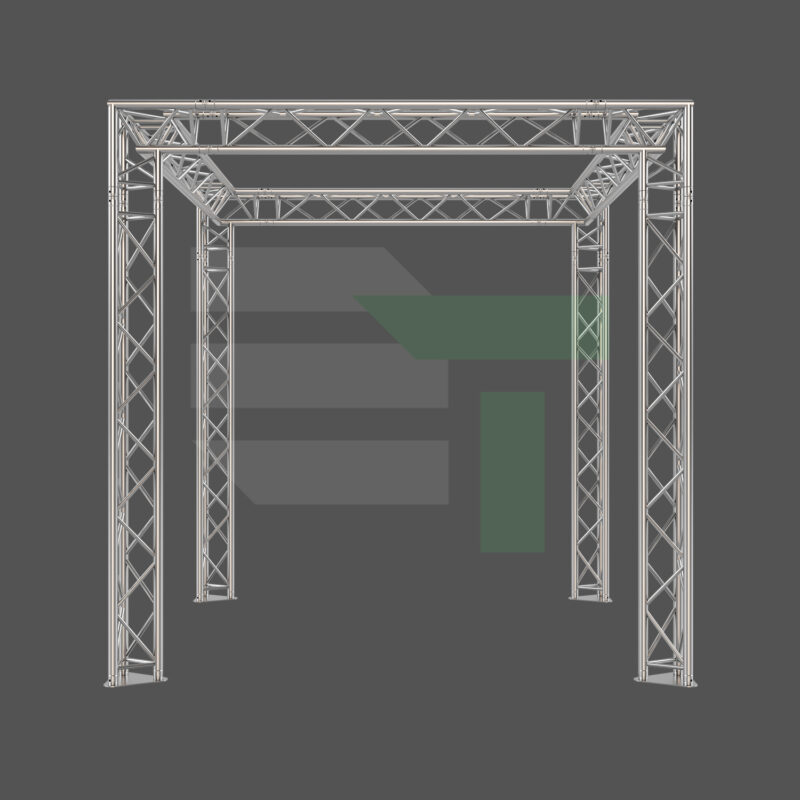

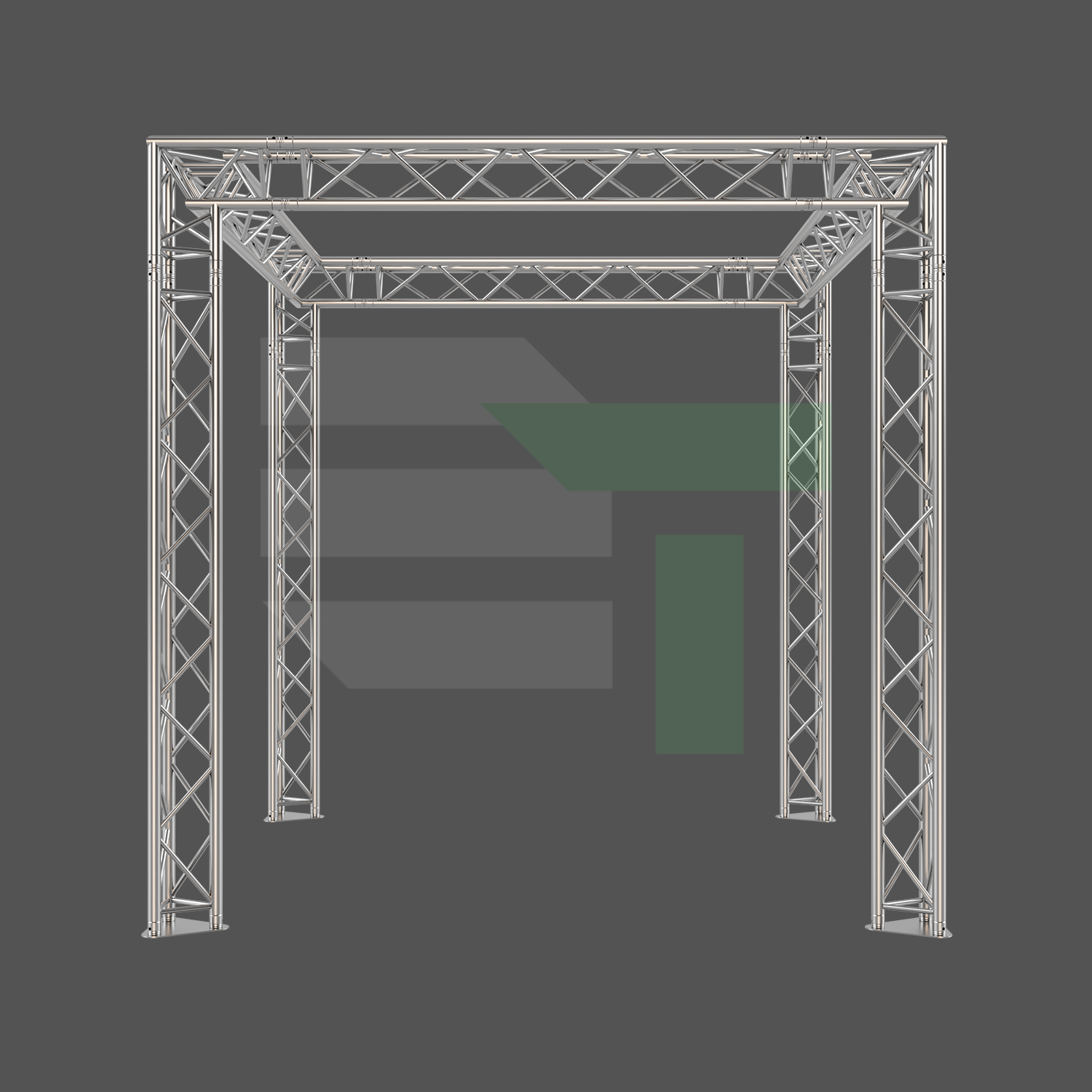

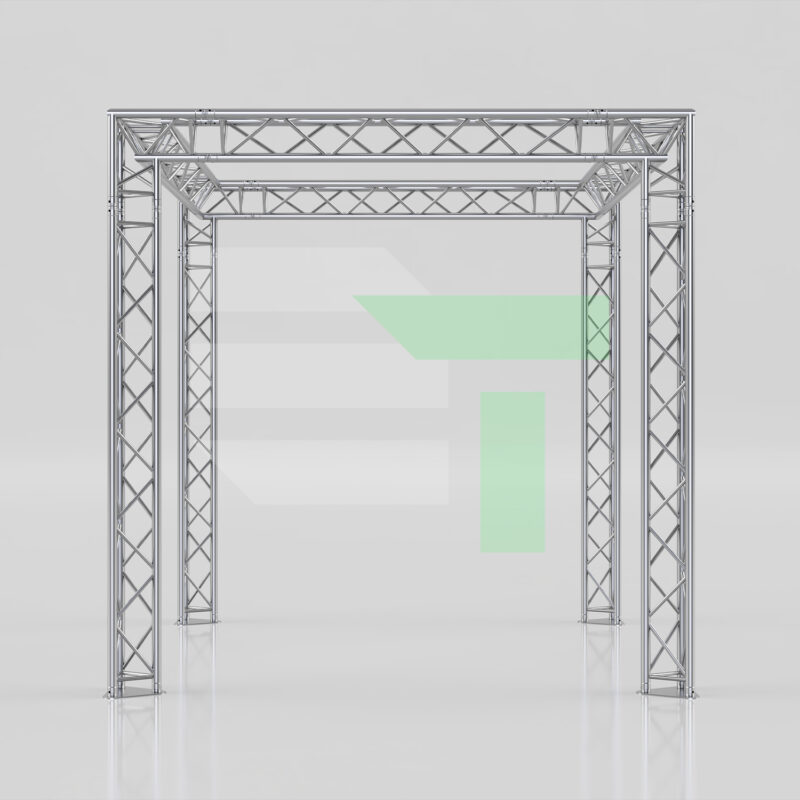

The EVT290T-Arcata 10x10 Trade Show Exhibit Display Booth is a sleek, modern truss system designed for exhibitors who want to stand out with a unique geometric look. Utilizing the EVT290T Triangular Truss, this system offers a stylish alternative to standard square grids, providing substantial structural strength while minimizing visual bulk.

Function & Compatibility:

This kit utilizes the EVT290T Series (290mm / 11.42" wide) triangular truss. It features standard 50mm (2") main chords, making it fully compatible with standard rigging clamps for lighting and AV equipment. The apex-down or apex-up orientation options allow for creative lighting angles. It uses a secure conical connection system for rapid assembly requiring only a small hammer.

Unlock Limitless Configurations with Modular Expansion

The EVT290T-Arcata is more than just a static 10x10 booth — it is a scalable building block for your event infrastructure. Because it is built from standard EVT290T Series components, you can easily modify its design to suit different venues without buying a completely new system:

• Adjust Dimensions: Need taller clearance or a wider entrance? Insert additional 0.5m, 1.0m, or 2.0m straight segments to customize the height and width to your specific venue requirements.
• Change the Geometry: The triangular profile allows for unique apex-up or apex-down mounting orientations, creating distinct visual lines that square truss cannot replicate.
• Grow Your Inventory: This system seamlessly integrates with the entire EVT290T Catalog, allowing your rigging options to grow alongside your business needs.

Key Features

• Complete Turnkey Kit: Ready-to-build 10' x 10' structure with all necessary triangle segments and corners.
• Modern Geometric Design: Triangular profile offers a distinctive, contemporary aesthetic for retail and expo environments.
• Standard 50mm Tubing: Compatible with all standard 2-inch clamps and accessories.
• Lightweight High-Strength: Constructed from 6082-T6 Aluminum Alloy.
• Tool-Free Assembly: Conical connection system uses tapered couplers for fast setup.
• TÜV Specifications: Fabricated in accordance with strict TÜV safety standards.

Designed by Evolve Truss, the EVT290T-Arcata offers a dynamic architectural look that stands out on the show floor.

⚠️ Safety & Engineering Notice

❗ Critical Ballast & Rigging Information:

• Scrim/Banner Warning: If using a rear scrim or banner, the structure requires 800 lbs of ballast on each corner (or anchorage to a concrete slab) to prevent tipping due to wind shear or transverse forces.
• Total Distributed Load: Max 140 lbs per linear foot (70 lbs applied to each of the top two chords).
• Bottom Chord Load: Max 80 lbs per linear foot (applied only to the bottom chord).
• Center Point Load: Max 630 lbs on each span (applied only to the bottom chord).
• Rigging Note: Values assume no bridling. Loads must be distributed equally.

Important Guidelines for Safe Use:

• Inspect all truss segments for damage before use. If found, mark "DO NOT USE" and remove from service.
• Ensure all coupler pins and R-clips are fully engaged and secured.
• Assembly should only be performed by personnel familiar with truss mechanics.
• The purchase of this product does not authorize specific installations; a licensed professional engineer shall review all structures, especially when adding banners or heavy loads.

⚠️ Compatibility Warning

Crucial Steps for Safe Assembly:

• Verify Dimensions: This system uses triangular truss. Ensure any expansion parts match the EVT290T geometry and orientation (apex-up/apex-down).
• Clamp Compatibility: Uses standard 50mm clamps. Ensure clamps are tightened securely to the round chords, not the bracing.

Technical Resources & Project Support

Need load tables, CAD files, or engineering documentation for this product? Contact the Evolve Truss team — we'll get you what you need.

Disclaimer and Guidance Statement: The purchase of any product shall not be construed as authorizing or approving a specific installation or usage. A licensed professional engineer shall review all structures, lighting plots, or any other product uses. While exhaustive efforts have been undertaken to ensure the precision of this information, Evolve Truss Worldwide, LLC hereby disclaims any and all liability for errors. These drawings are intended solely for the purpose of providing guidance and should not be construed as definitive representations.
