EVT12S-GRAPPLE | 90-Degree Connecting Bar Set for 12″ Square Truss

Dimensions & Specs
Type: 90-Degree Connecting Bar Set
Application: Creates or reinforces a 90-degree corner connection
Compatibility: EVT12S Series 12″ Square Truss

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Connection Type: End-Plated Nut and Bolt (Heavy-Duty Bolted Truss)

Finish & Features
Surface: Aluminum Brush Finish
Included: Connecting Hardware
Weight: 4 lb (1.81 kg)

In stock

SKU: EVT12S-Grapple Category:

EVT12S System Knowledge Center

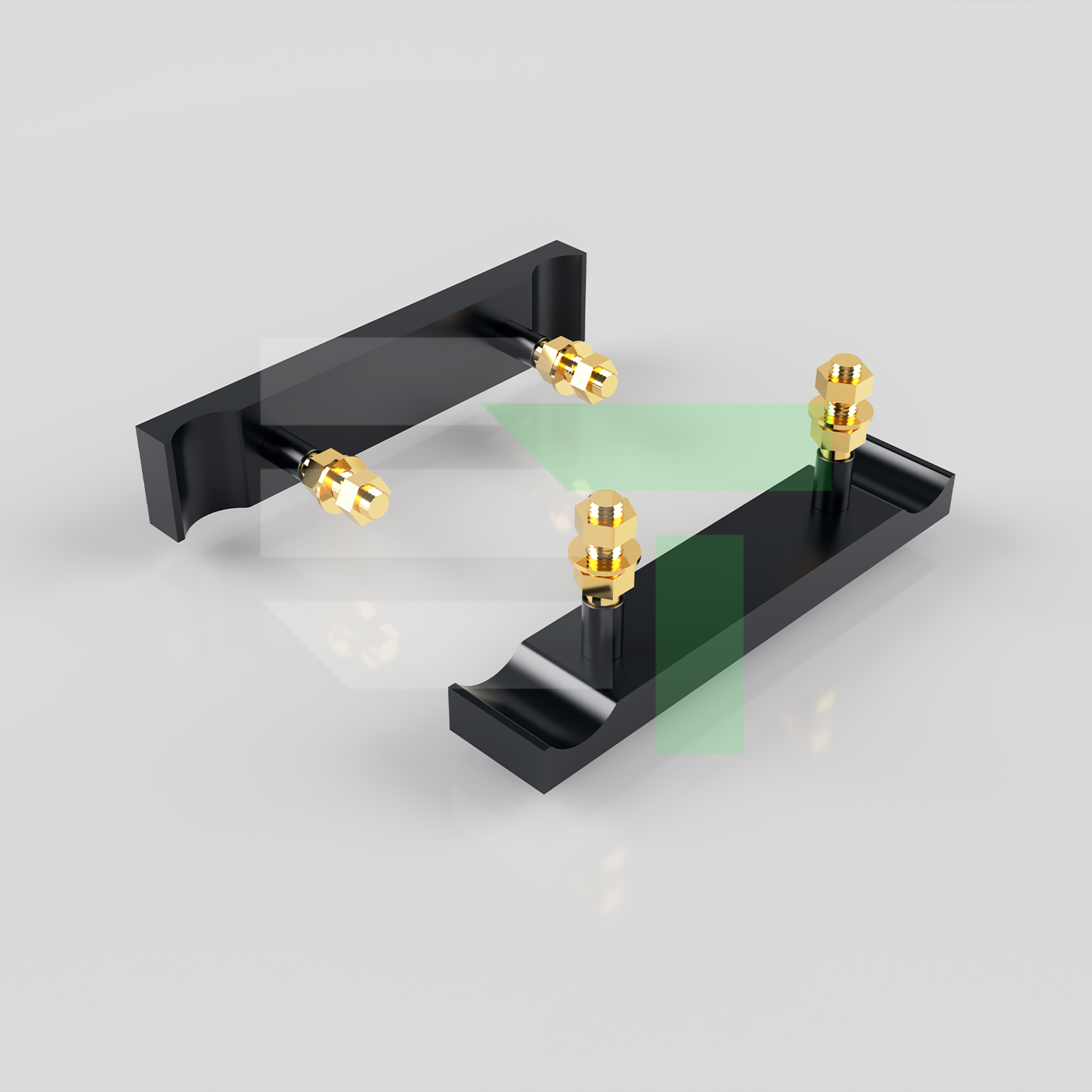

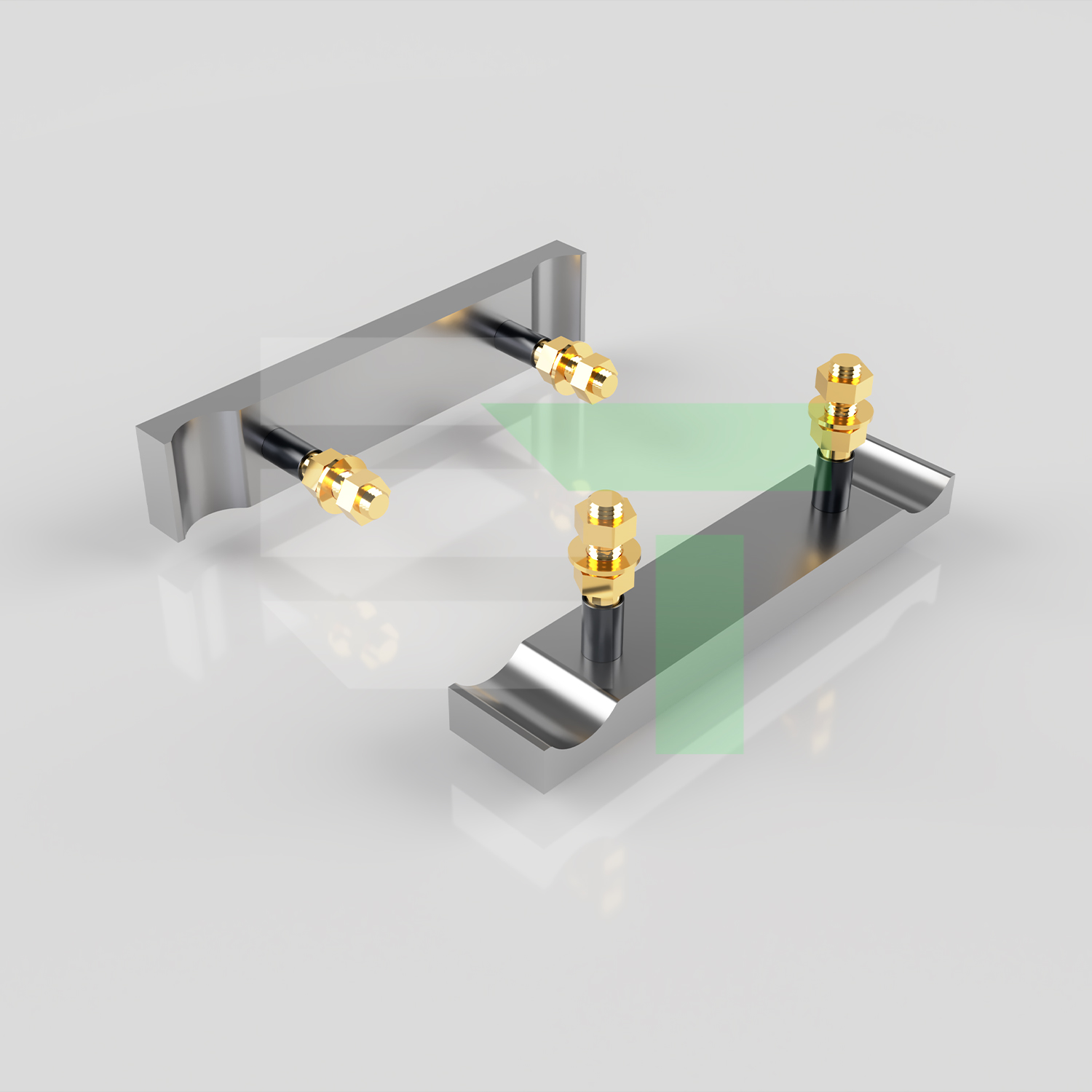

EVT12S-Grapple 90-Degree Connecting Bar Set.
For EVT12S and 12-Inch End-Plated Truss Corners.

The EVT12S-Grapple is an aluminum 90-degree connecting bar set for EVT12S and 12-Inch End-Plated Truss Systems. It joins two straight truss sections at a right angle. The set includes connecting hardware and weighs 4 lb / 1.81 kg. Confirm end-plate dimensions, bolt pattern, hardware, supports, and applied loads before use.

Product Facts

Model / SKUEVT12S-Grapple
Product Type90-Degree Connecting Bar Set
Truss Context12 x 12 End-Plated Truss
Connection Angle90 Degrees
MaterialEN AW-6061-T6 Aluminum Alloy
Weight4 lb / 1.81 kg
90°Connection Angle
12 x 12 inTruss Context
6061-T6Aluminum Alloy
End-PlatedConnection Interface
HardwareIncluded

Product Overview

A Fixed Right-Angle Connection for End-Plated Truss.

The EVT12S-Grapple joins two compatible straight 12 x 12 inch end-plated truss sections at a 90-degree angle. It is a connection accessory used within a completed truss assembly. It does not independently establish the completed structure’s capacity, support arrangement, hardware requirements, or installation suitability.

90-Degree Connection
Used to join two compatible straight truss sections at a fixed right angle.
End-Plated Interface
Designed for a compatible end-plate and bolt-pattern arrangement.
Connecting Hardware
Connecting hardware is included with the set.
Corner Connection Accessory
Not a suspension point, direct load attachment location, or stand-alone support.

What It Does

It Joins Two Compatible Sections at A 90-Degree Corner.

The connecting bar set is used in compatible end-plated truss configurations where two straight sections meet at a right angle. Confirm all mating components, the required hardware, the completed assembly, supports, and applied loads before assembly or use.

Connects a Corner
Creates a right-angle connection between two compatible straight truss sections.
Uses End Plates
Interfaces with compatible end plates and the applicable bolt pattern.
Part of a System
Use only as part of a completed truss arrangement with compatible components and connections.
Not a Load Point
Do not attach, hang, rig, suspend, or support loads directly from the connecting bars.

Selection Guidance

Select the Grapple Set for A Compatible 12 x 12 End-Plated Corner.

Select the EVT12S-Grapple when a build calls for a 90-degree connection between compatible 12 x 12 inch end-plated truss sections. Do not select by truss outside dimension alone; verify the end plate, hole pattern, mating components, and hardware, and confirm the corner arrangement.

Straight-Section Corners
For a right-angle corner between compatible straight truss sections.
End-Plate Verification
Confirm end-plate dimensions, hole pattern, and mating-interface details before ordering.
Hardware Review
Confirm the included hardware is appropriate for the assembly.
No Substitution
Do not use the set as a substitute for a specified corner block, support component, or engineered connection.

Technical Reference

EVT12S-Grapple Product Specifications.

These facts identify the product and its connection context. They do not replace manufacturer drawings, assembly instructions, or project-specific review where required.

Identification

Product Details

Model / SKUEVT12S-Grapple
Product Type90-Degree Connecting Bar Set
BrandEvolve Truss
Weight4 lb / 1.81 kg
Warranty1-Year Limited Manufacturing-Defect Warranty

Connection Context

Truss Interface

Connection Angle90 Degrees
Truss Context12 x 12 End-Plated Truss
InterfaceEnd-Plated Nut-and-Bolt Truss
IncludedConnecting Hardware

Construction

Material and Finish

MaterialEN AW-6061-T6 Aluminum Alloy
FinishBrushed Aluminum
Component RoleCorner Connection Accessory
Use LimitationNot a Direct Attachment Location for Loads

Compatibility

Compatible End Plates Require More Than a Matching Outside Dimension.

The EVT12S-Grapple is designed for EVT12S and 12-Inch End-Plated Truss Systems. Fit is not established by a nominal truss size alone. Verify the actual end-plate profile, bolt pattern, hole dimensions, mating components, clearance, hardware, and corner arrangement before use.

End-Plate Profile
Compare the actual end-plate profile and mating surfaces.
Bolt Pattern
Confirm hole positions, diameter, and required fastening hardware.
Corner Fit
Confirm the selected sections can form the 90-degree arrangement without interference.
Mixed Components
Do not assume separately sourced or mixed-brand components are compatible; obtain applicable manufacturer information and qualified review where required.

Assembly Overview

Confirm the Interface. Then Assemble the Corner.

Assembly should be performed by personnel qualified for the applicable truss system and in accordance with current manufacturer documentation. This overview does not provide a torque value, capacity value, or approval for a specific installation.

01 — Confirm the Design
Confirm the selected connection is part of the approved truss design.
02 — Inspect Components
Inspect connecting bars, end plates, holes, hardware, and mating truss sections for damage or deformation.
03 — Verify the Interface
Confirm matching end-plate dimensions, bolt pattern, hardware, and required clearance.
04 — Align the Sections
Position compatible truss sections at the 90-degree arrangement without forcing alignment.
05 — Install Hardware
Install the connecting hardware according to current manufacturer instructions.
06 — Inspect the Assembly
Check the completed corner, connections, supports, equipment placement, and installation against the approved design before placing the system into service.

Safety and Use Limits

A Connecting Bar Set Is Not A Stand-Alone Support or Rigging Point.

The EVT12S-Grapple is a connection accessory for compatible end-plated truss configurations. The complete truss system, all connections, supports, equipment, load arrangement, and installation conditions require review before use.

Do not use the connecting bar set as a direct attachment location for loads.
Do not attach, hang, rig, suspend, or support loads directly from the connecting bars.
Inspect connecting bars, end plates, bolt holes, mating components, and hardware before every assembly.
Remove damaged, bent, cracked, deformed, or otherwise compromised components from service.
Do not force incompatible, damaged, or misaligned truss sections into position.
Do not assume compatibility from a nominal 12 x 12 inch size alone.
Use current manufacturer documentation and obtain qualified project-specific review where required.
Confirm Current Documentation Before Ordering or Installing
Confirm current manufacturer drawings, assembly instructions, hardware requirements, component fit, and complete installation requirements before ordering or installing the EVT12S-Grapple. Obtain qualified project-specific review where required for public-facing, elevated, outdoor, suspended, or other installations involving structural or equipment loads.

Product Questions

EVT12S-Grapple Frequently Asked Questions.

What does the EVT12S-Grapple do?

It is a 90-degree connecting bar set that joins two compatible straight 12 x 12 inch end-plated truss sections at a right angle.

What is included, and what is it made from?

The set includes connecting hardware. The bars are made from EN AW-6061-T6 aluminum alloy with a brushed aluminum finish, and the set weighs 4 lb / 1.81 kg.

Can I hang a light or rigging load from the connecting bars?

No. The connecting bars are not a direct attachment location for loads or a stand-alone rigging point.

How do I confirm compatibility?

Verify the actual end-plate profile, bolt pattern, hole dimensions, mating components, clearance, hardware, and corner arrangement before use.

Need a 90-Degree Connecting Bar Set for an EVT12S Truss?

Contact us for product identification, product documentation, connection-interface information, hardware questions, and quote support. Project-specific compatibility and installation requirements should be reviewed by qualified personnel where required.

Contact UsRequest a Quote
